Tugboat Marine Rubber Fender

Tugboat Marine Rubber Fender

The tugboat fenders are a kind of marine rubber fender for tugboat and can be used for all kinds of tugboats, going in for the operation of pushing, standing, stretching and leaning, etc. The rubber fenders on tugboats and workboats are often mounted on bow and stern-mounted as the main push fenders. Therefore, it is also known as the cylindrical bow and stern rubber fender. The circular shape makes them ideal when working with large bow flares, but they are also suited to pushing flat-sided vessels. They are often used on the bow in combination with Keyhole, M or W fenders. They are made of high abrasion resistance rubber with good resilience properties for required applications. The tug fenders adopt completely vulcanization technology with good performance, long-life utility and easy installation. They dismantle with users friendly fixtures, tool tackles and are welcomed with small port craft owners and tug owners.

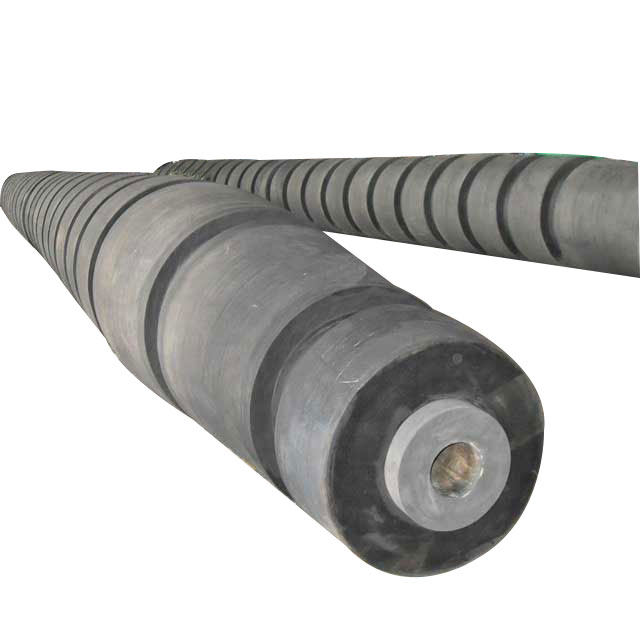

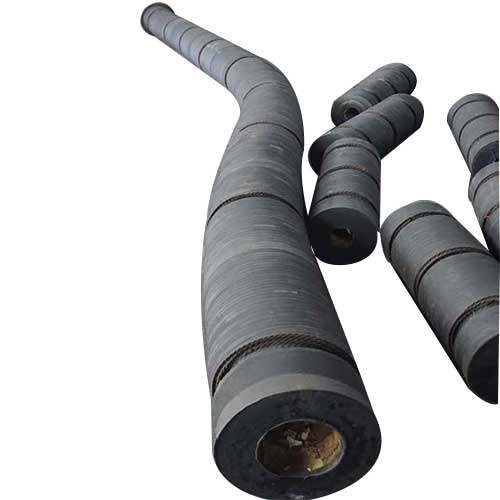

YSmarines produces this type of fender by means of a winding process up to a diameter of 1000 mm. If required they can be provided with tapered ends for better attachment to the ship and with grooves for additional attachment with chains or nylon straps. YSmarines specializes in manufacturing tugboat fenders with high-quality rubber and custom-made fender with short lead times.

Features Of Tugboat Fender

● Good performance;
● High energy absorption and low force reaction;
● Convenient to install and maintain.

Specifications Of Tugboat Rubber Fender

Model	T200	T250	T300	T350	T400	T500	T600	T700	T800	T900	T1000
D(mm)	200	250	300	350	400	500	600	700	800	900	1000
L	2-13 meters in one section or joined for longer length
A(mm)	150	200	225	250	300	350	350	350	350	350	350
B(mm)	530	570	600	630	670	730	800	860	930	1000	1060
C(mm)	500	500	700	800	800	900	900	1000	1000	1100	1200
G(mm)	150	190	225	300	300	375	450	525	600	675	750
d(mm)	100	125	150	200	200	250	300	350	400	450	500

Workshop Of Tug Fender

Package Of Tugboat Marine Rubber Fender

Packaged with the wooden case;
Packaged with wooden pallet;
Packaged with steel pallet;
Packaged in the container directly.

Applications Of Tug Rubber Fender

• Tugboats;
• Workboats;
• Icebreakers;
• Supply boats.

Installation Of Tugboat Fender  Of YSmarines

The tugboat rubber fenders are installed on the bow and stern of the tugboats and workboats.

FAQ Of YSmarines Tugboat Rubber Fender

1. Can you supply OEM or ODM service?
A: Yes, we have a great research & development team. The tugboat rubber fender can be customized according to your requirements in different heights, widths and lengths.
2. Do you also supply the relative rubber fenders and fittings?
A: Yes, we supply the completed set of tugboat fendering systems, including the cylindrical rubber fender, cylindrical bow & stern rubber fender, keyhole rubber fender, W shape rubber fender, M shape rubber fender and the installation fittings.
3. What is your term of delivery?
A: We accept EXW, FOB, CIF, DDU, DDP, etc. You can choose the one that is the most convenient for you.
