NS2585 Warping Roller Fairlead
- Material: Cast Iron Or Cast Steel
- Nominal Size: 150mm to 450mm
- Weight: 24.8KG to 310KG

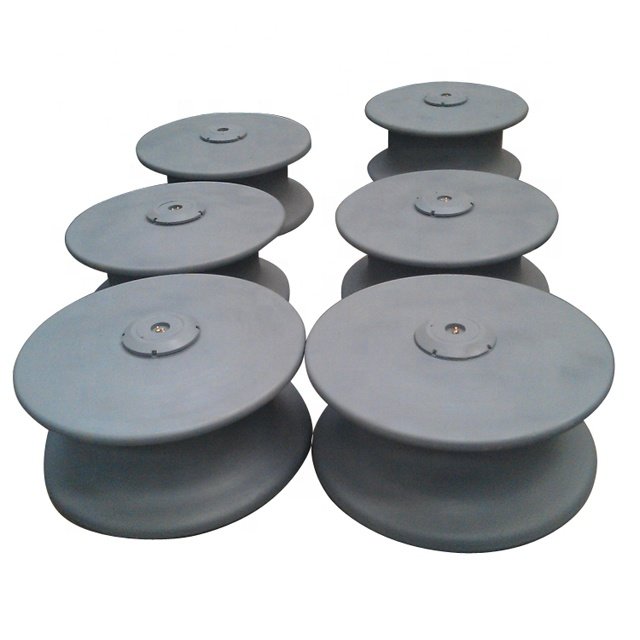

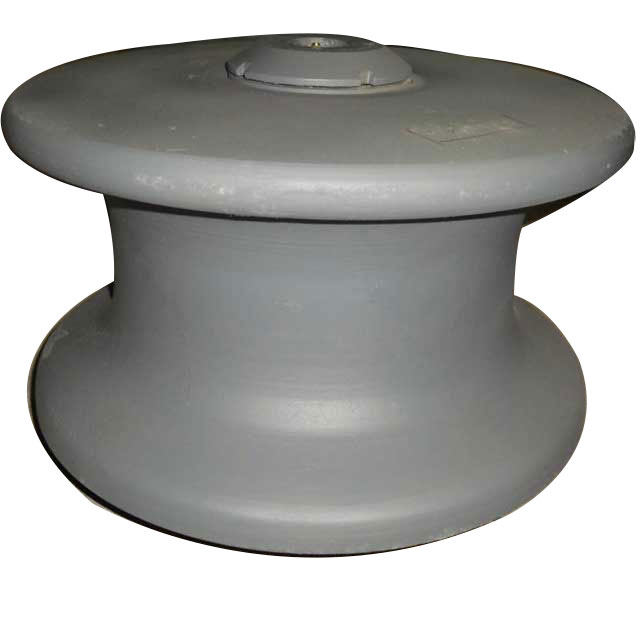

NS2585 Warping Roller Fairlead
NS2585 warping roller is the same as the GB/T 10105-88 fairlead. It is cast by the finest quality marine mild carbon steel for added durability. All surfaces in contact with the ropes shall be free from surface roughness or irregularities likely to cause damage to the ropes by abrasion. It has a high breaking load of a tightwire. The compact design, precision machined smooth surface and easily removable shafts ensure the good wear and corrosion resistance of the fairlead. It is used to lead the direction of mooring ropes for marine ships. YSmarines can manufacture the NS2585 warping roller as your request, best price guaranteed.
Features:
● Flexible bearing or axle;
● Smooth surface coated externally with an anti-corrosion protective finish;
● Anti-seawater material.

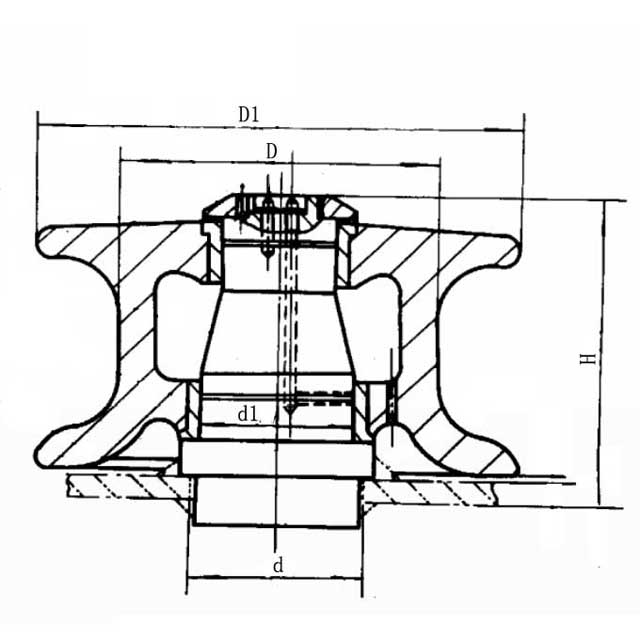

Nominal Size | Dimensions (mm) | Weight | ||||
(mm) | D | D1 | d | d1 | H | (kg) |
150 | 150 | 240 | 90 | 79 | 154 | 24.8 |
200 | 200 | 310 | 115 | 99 | 186 | 49.3 |
250 | 250 | 380 | 135 | 119 | 230 | 92 |
300 | 300 | 440 | 155 | 129 | 255 | 127 |
350 | 350 | 500 | 175 | 149 | 271 | 168 |
400 | 400 | 560 | 185 | 159 | 307 | 252.5 |
450 | 450 | 630 | 210 | 179 | 316 | 310 |
