ISO13733 Roller Fairlead with Upper Roller

ISO13733 Roller Fairlead with Upper Roller

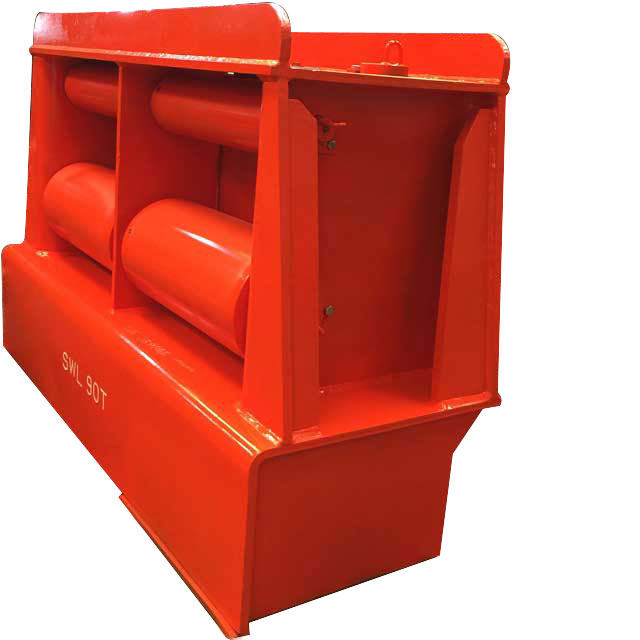

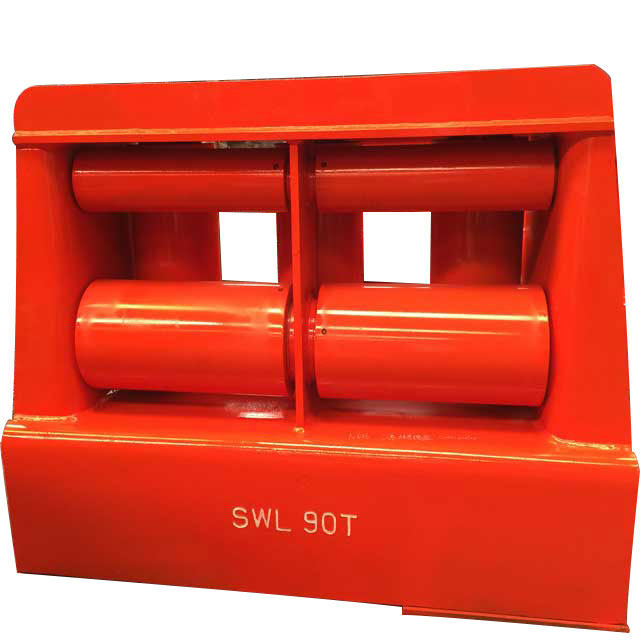

The roller fairlead is manufactured according to the ISO 13733 standard with an upper roller. It is a type of ship’s mooring fitting installed on board to lead the mooring rope from the ship’s inboard to outboard. The fairlead is also known as universal fairlead because it can lead the mooring ropes from different directions. All surfaces shall be free from any visible flaws or imperfections. It is coated externally with an anti-corrosion protective finish. The rotating parts are provided with greasing. Depending on the construction, the roller fairleads shall be classified as four types as below, which includes type 4R, type 5RL (with additional guide roller on the left side), type 5RR (with additional guide roller on the right side) and type 7R.

Features:

● Welded structure;
● Smooth and primer surface to protect the ropes and wire ropes;
● Seawater resistant bronze slide bearing with grease lubrication.
