A38 Swivel Head Anchor Fairlead
- Material: Steel
- Wire Rope Dia.: 25mm to 82mm
- Sheave Dia.: 254mm to 1020mm
- Weight: 210KG to 10800KG

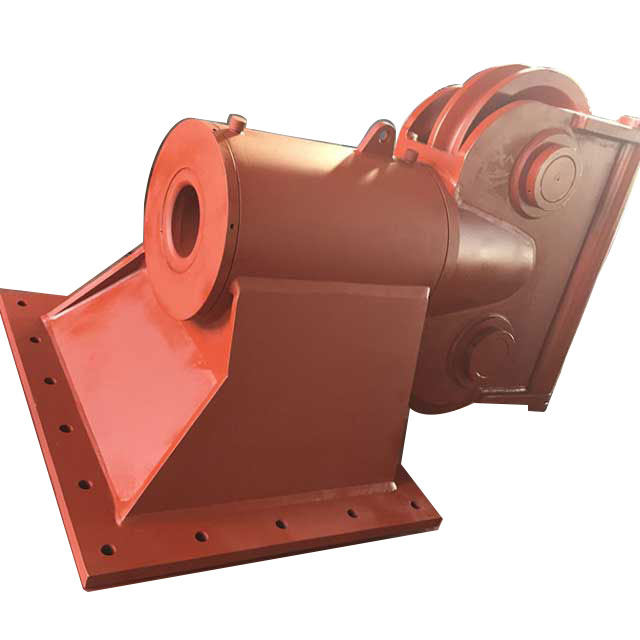

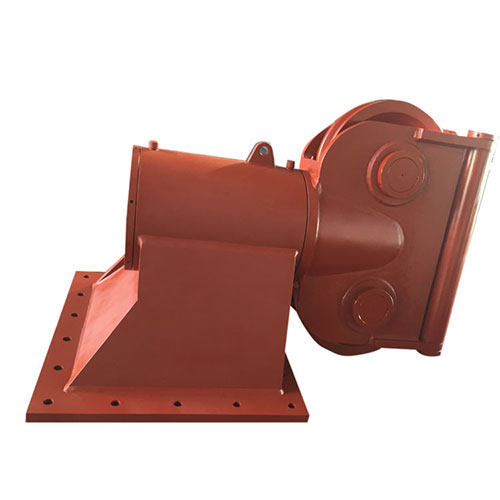

A38 Swivel Head Anchor Fairlead
A38 swivel fairlead is one kind of heavy-duty double sheaves fairlead. And the anchor fairlead can be supplied with a welded and bolted foundation for the installation on the deck of vessels or on the dock. It is one kind of roller fairleads with high breaking strength to suit wire rope for ship mooring. It is designed with 90° wrap on sheave and +/- 90° rotation of the swivel head. The shape of the opening is approximately elliptical. YSmarines provides customized design for swivel fairlead with the certificate of DNV, BV, ABS, LR, etc.
Features:
● designed for breaking strength of wire with 90° wrap on sheave and +/- 90° rotation of swivel head;
● sealed lubricated tapered roller bearings;
● hardened rope grooves for longer life;

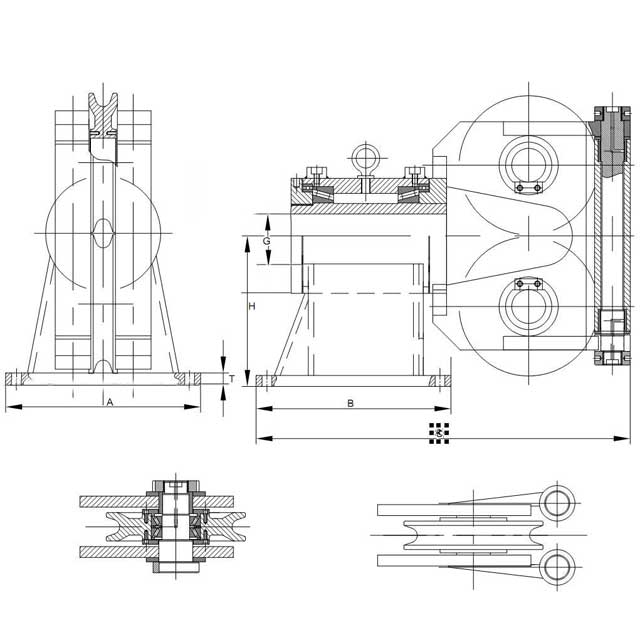

Wire Rope Dia. (mm) |
Sheave Dia. (mm) | Dimensions (mm) |
Wight (kg) | |||||
A | B | C | T | H | G | |||
25 | 254 | 486 | 420 | 722 | 20 | 277 | 70 | 210 |
32 | 305 | 570 | 492 | 839 | 20 | 342 | 104 | 365 |
38 | 406 | 780 | 782 | 1266 | 30 | 489 | 143 | 850 |
44 | 508 | 1064 | 914 | 1467 | 40 | 546 | 150 | 1520 |
50 | 610 | 1219 | 1067 | 1763 | 40 | 648 | 186 | 2600 |
64 | 762 | 1372 | 1219 | 2045 | 50 | 800 | 230 | 4000 |
76 | 938 | 1800 | 1500 | 2634 | 50 | 950 | 300 | 7200 |
82 | 1020 | 1800 | 2000 | 3186 | 50 | 1100 | 320 | 10800 |
