YS009 Type Passenger Seat
- Lower backrest seat.
- Fixed backrest or adjustable backrest angle.
- The size of the seats could be customized.
- The anti-corrosion aluminum structure is durable.
- Simple design lightest weight ferry seats for economy class.
- High-quality corrosion-resistant aluminum. Aluminum cushion and backrest frame, aluminum beams, legs, armrests, tracks.
- Upholstery can be fabric or synthetic leather, or leather, upholstery material is approved flame retardant testing.
- Armrest could be flat open , curved open, flat closed arm rest and curved closed arm rest, folding arm rest.
- Track or track bolt for choice.

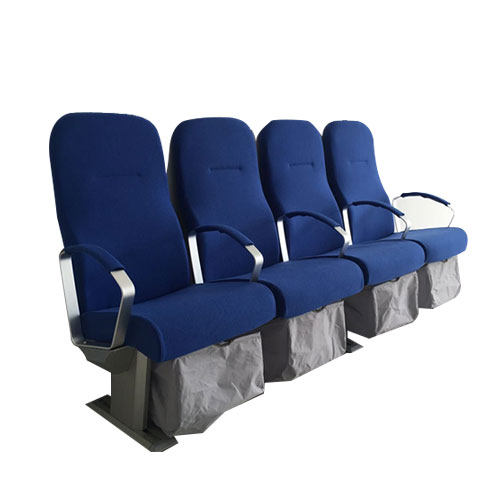

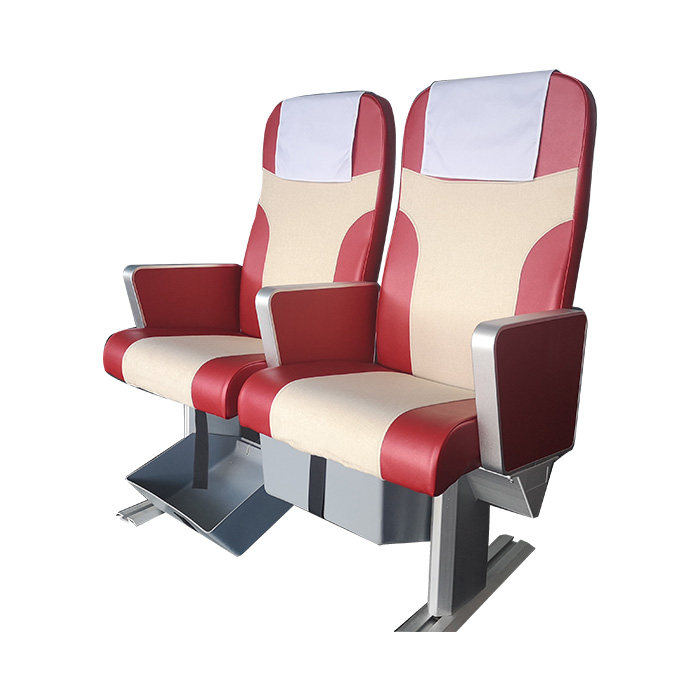

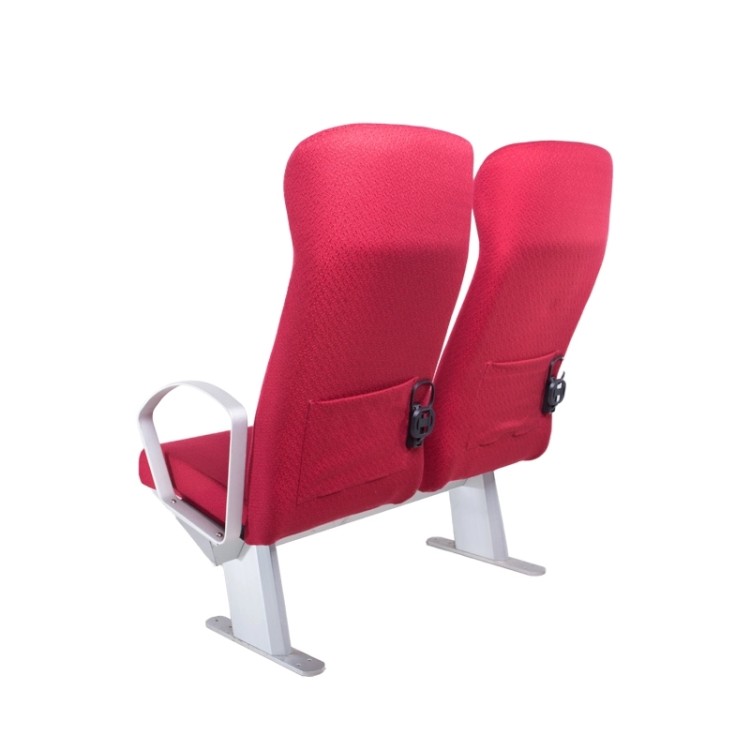

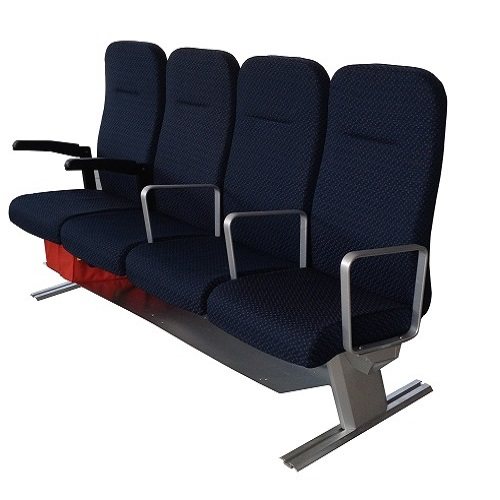

YS009 Type Passenger Seat
The ferry seats are designed for passenger seating and have seats with 2-seater or 3-seater. They can be suitable for a fast ferry, a sightseeing boat, a traffic boat, a pilot launch, etc. They meet modern design according to the features of the boat. It can also be made of various materials, such as fabric, leather and so on. The lifejackets are under the seat base. The armrests are aluminum. The lifejacket compartment and document pocket are optional according to the requirements of customers. YSmarines supplies the ferry passenger seats and chairs, according to IMO standard and ISO standard and They are approved by CCS, ABS, DNV, GL, LR, etc.
Specifications:
| No. | Spec. | Width(mm) | Weight(KG) |
| 1 | Single | 550 | 11.5 |
| 2 | Double | 1060 | 18.6 |
| 3 | Triple | 1570 | 26 |
| 4 | Quadruple | 2080 | 33 |
Basic configuration:
Seat cushion and the back of a chair(including magazine bag)
United and decorative head
Armrest
Chair foot
An adornment to install rails
Railhead
Rail decoration layering
Life-saving pocket
Installation accessories
Optional configuration:
Meal Trays
Fixed back/Reclining back
Headrest
Footrests
Life jacket bag
Document pocket
Antimacassar
Hand grip
Material:
A. Chair surface is leather or fabric flame retardant;
B. Back for high-density polyester one-time forming high cold foam spring backfire sponge;
C. For high-density polyester one-time forming high cold foam cushion spring backfire sponge;
D.Seat beams, chair foot, armrest for high strength aluminum alloy 6063 oxides;
E.Rail for high strength aluminum alloy 6061 oxides;
F.Adornment to beams and railhead for PVC plastic resin materials;
G.Rail decoration layering for environmental protection rubber material;
