NS2589 Bulwark Mounted Mooring Chock

NS2589 Bulwark Mounted Mooring Chock

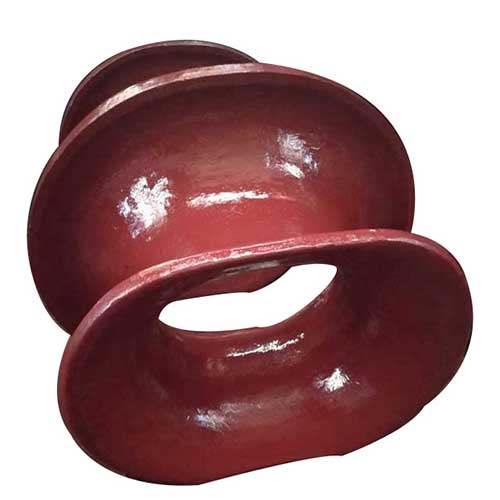

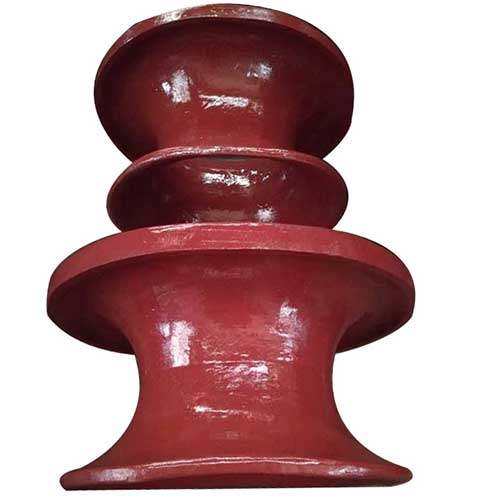

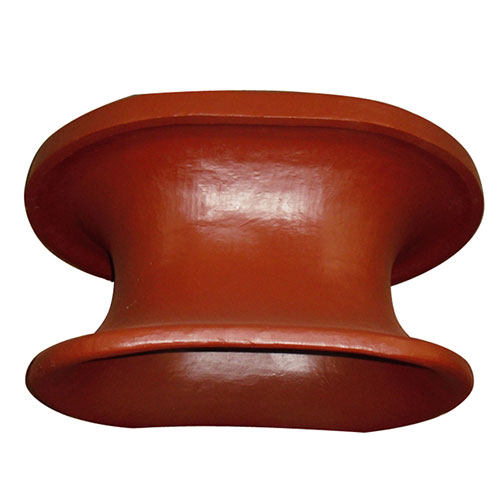

The NS2589 Bulwark Chocks are cast steel chocks. The mooring chocks are the bulwark mounted types and are made according to the NS 2589 standard. They are approved by the Panama Canal Commission (PCC). There is no any stiffening plate around the chocks, so there are two sizes for the NS2589 chock without too much SWL. The Nominal Size of 300*250mm is designed as a single chock in PCC and shall be capable of withstanding a strain of 445KN on a towing wire. The Nominal Size of 400*250mm is designated as double chock in PCC and shall be capable of withstanding a strain of 625KN on a towing wire. YSmarines supply the NS2589 mooring chock with the certificate of DNV-GL, BV, LRS, ABS, RINA, etc, best price guaranteed.

Features Of NS2589 Bulwark Chocks

Support the customized service;
Anti-corrosion protective surface treatment;
Simple structure design;
Advanced production technics.

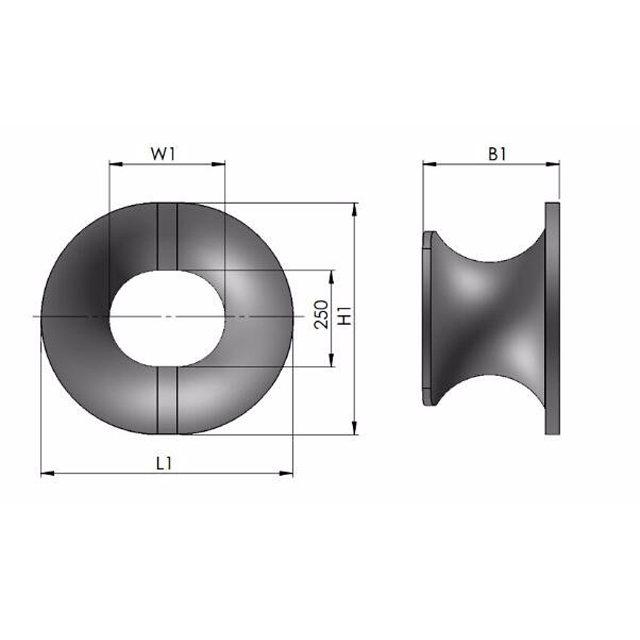

Technical Parameters Of NS2589 Bulwark Chocks

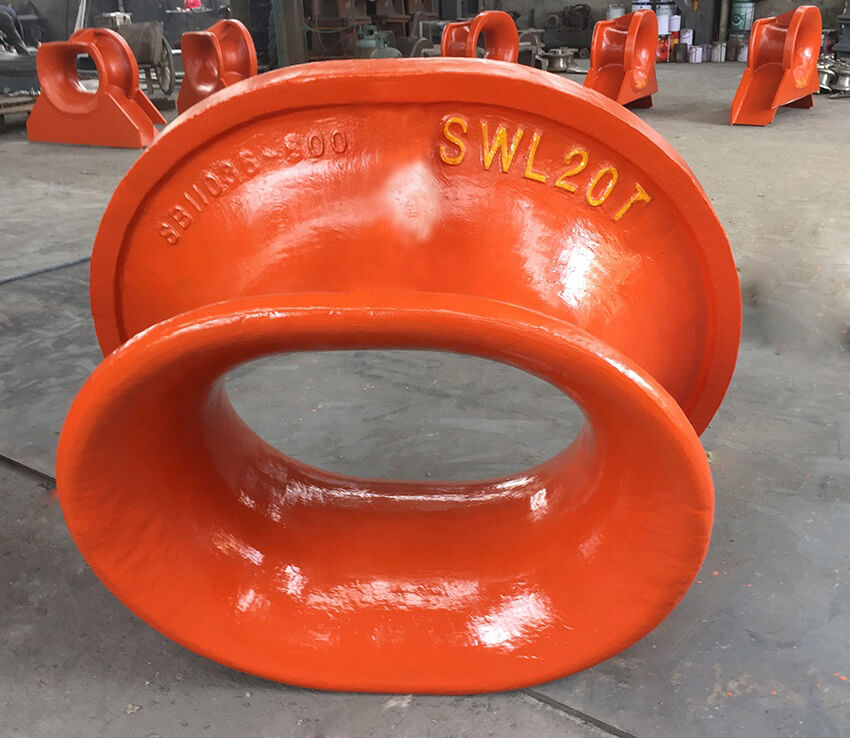

Workshop Of NS2589 Bulwark Mooring Chocks

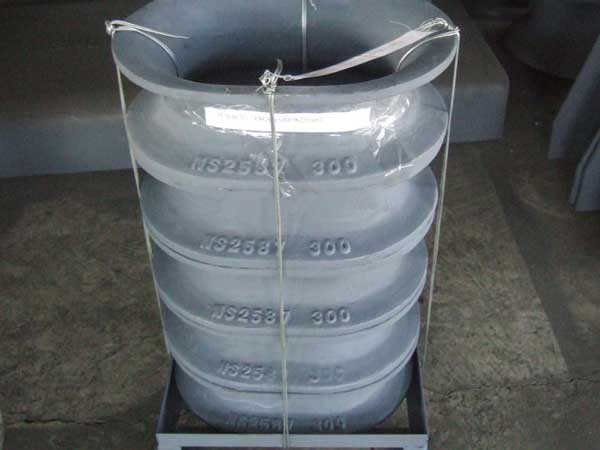

Package Of NS2589 Marine Mooring Chocks
