NS2587 Bulwark Mounted Mooring Chock

NS2587 Bulwark Chock

NS2587 bulwark mounted mooring chock sometimes also called NS2587 mooring pipe, follows the strict quality control system. It is designed as per the Norwegian Standard. Under this standard, there are four types of chocks available, such as NS2587 chocks, NS2588 chocks, NS2589 chocks, NS2590 chocks and they are often used in European countries. The surface of the NS2587 chock is smooth without burs or sharp edges, which helps reduce the friction of the mooring rope. But this type of chock cannot satisfy the requirements of the Panama Canal Commission (PCC). For this chock, it has two optional nominal dimensions. Type A is a welded mooring chock.  It is more often used in European countries than in Asia. YSmarines provides the mooring chock with custom design and the product has the certificate of CCS, DNV, GL, KR, LR, NK, etc.

Technical Parameters Of NS2587 Bulwark Mounted Mooring Chock

NS2587 Bulwark Mounted Mooring Chock (Type A)

Material: Cast steel
Weight: 15kg to 80kg
Finishing: the mooring chocks shall be coated externally with an anti-corrosion protective finish.
Installation site: on the bulwark

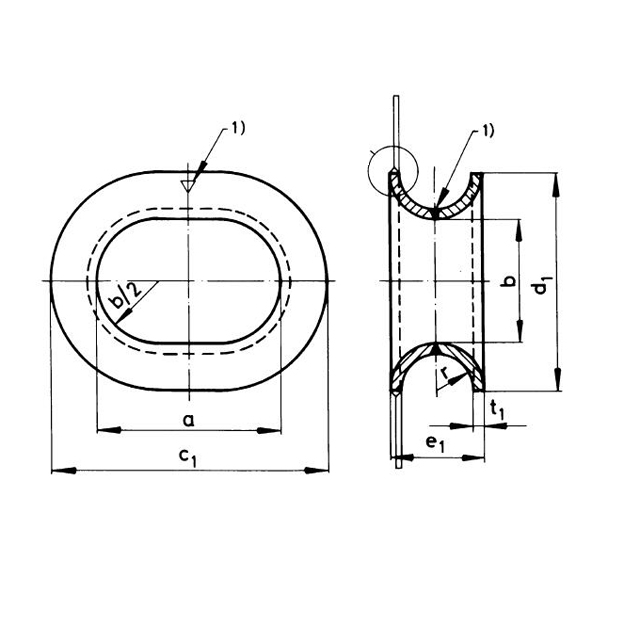

NS2587 Bulwark Mounted Mooring Chock (Type A)
Nominal Size (mm)	Dimensions(mm)							Weight (kg)
	a	b	c1	d1	e1	r	t1
200*150	200	150	330	280	130	49	16	15
300*200	300	200	450	350	150	59	16	38
400*250	400	250	590	440	190	75	20	80

NS2587 Bulwark Mounted Mooring Chock (Type B)

Material: Cast steel
Weight: 14.9kg to 99kg
Finishing: the mooring chocks shall be coated externally with an anti-corrosion protective finish.
Installation site: on the bulwark

NS2587 Bulwark Mounted Mooring Chock (Type A)
Nominal Size (mm)	Dimensions(mm)							Weight (kg)
	a	b	c1	d1	e1	r	t1
200*150	200	150	330	280	130	49	16	15
300*200	300	200	450	350	150	59	16	38
400*250	400	250	590	440	190	75	20	80

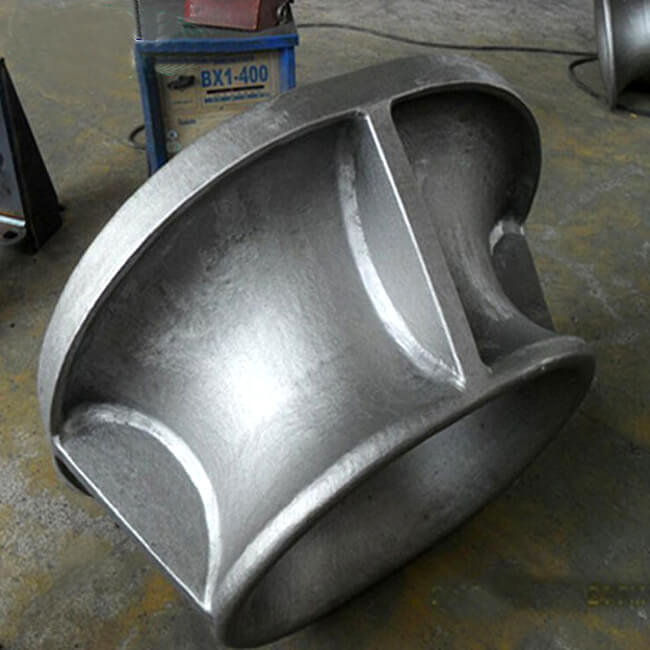

Workshop Of NS2587 Bulwark Chock

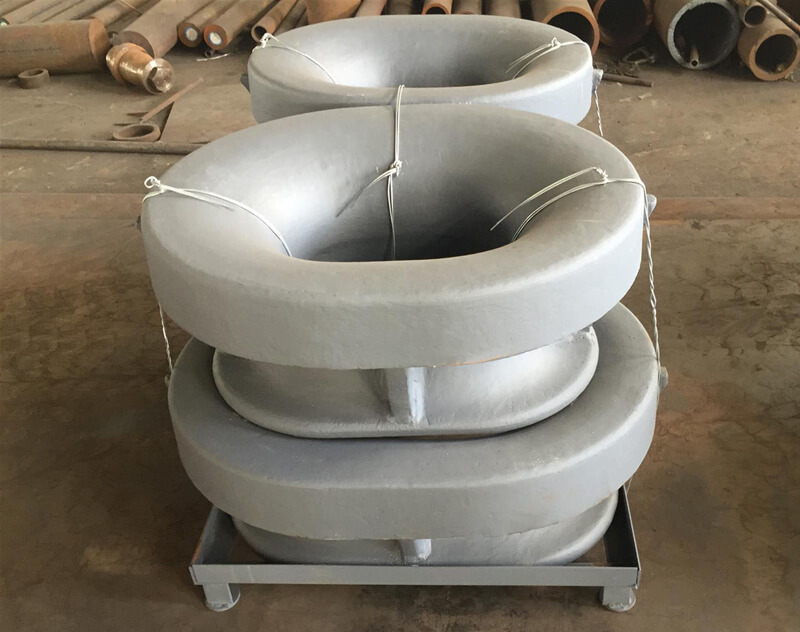

Package Of NS2587 Mooring Chock

Packaged by wooden pallets;
Packaged by steel pallets;
Packaged within containers directly.
