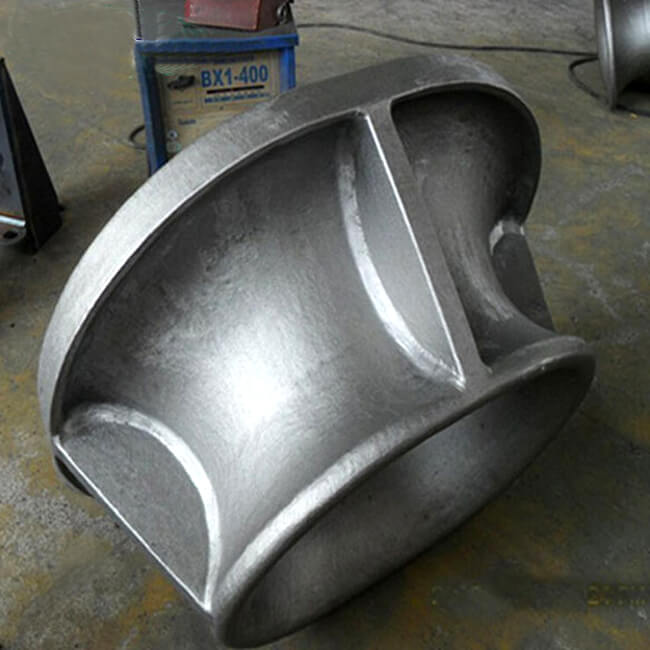

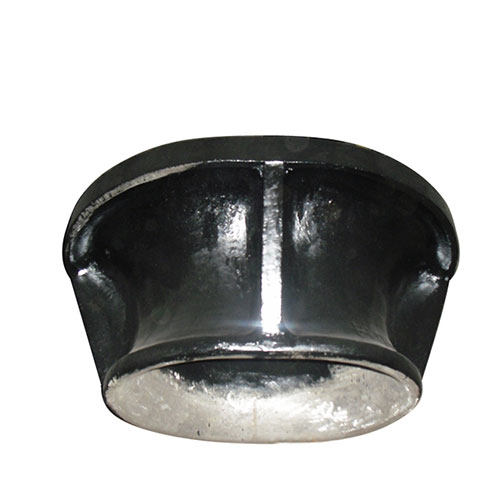

JIS F 2030-1978 Single Point Mooring Pipe

JIS F 2030-1978 Single Point Mooring Pipe

The single point mooring pipe is a bulwark mounted type marine chock and is made according to the standard of JIS F 2030-1978 (Japan Industrial Standards F). They are part of standard mooring setup, between ship bitts and the mooring bollards, suitable for temporary mooring and used especially for the guidance of rope mooring lines onboard a large vessel. The JIS F2030 mooring pipe is found at the vessel’s bow bulwarks, below the gunwale, to avoid wear and tear of the mooring line. B type JIS F2030 mooring pipes are welded at the vessel bow. It is manufactured by steel according to the requirement of standard JIS G 5101. It has two types, which are oval single point mooring pipe (Type A) and the oval inclined one (Type B). All the single-point mooring pipes offered by YSmarines are approved by BV, CCS, ABS, DNV, etc.

Features Of JIS F 2030 Single Point Mooring Pipe

_{Paint primed or galvanized surface treatment;
Closed mooring chock shape;
Class Approved;
Strict quality control.}

Technical Parameters Of JIS F 2030-1978 Oval Single Point Mooring Pipe

JIS F 2030-1978 Oval Single Point Mooring Pipe (Type A)

Material: Cast steel ZG230-450
Weight: 210kg to 880kg
Finishing: the mooring pipes shall be coated externally with an anti-corrosion protective finish.
Installation site: on the bulwark

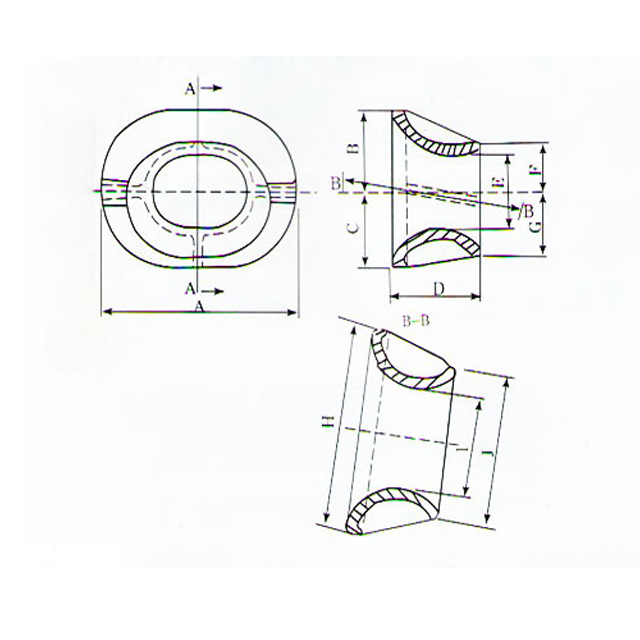

JIS F 2030-1978 Oval Inclined Single Point Mooring Pipe (Type B)
Nominal Size (mm)		Dimensions(mm)						Weight (kg)
	A	B	C	D	E	H	I
400	800	320	300	350	300	800	400	190
500	960	370	350	400	400	960	500	310
600	1120	420	400	450	450	1120	600	460
700	1280	470	450	500	500	1280	700	660
800	1440	520	500	550	600	1440	800	830

JIS F 2030-1978 Oval Inclined Single Point Mooring Pipe (Type B)

Material: Cast steel  ZG230-450
Weight: 190kg to 830kg
Finishing: the mooring pipes shall be coated externally with an anti-corrosion protective finish.
Installation site: on the bulwark

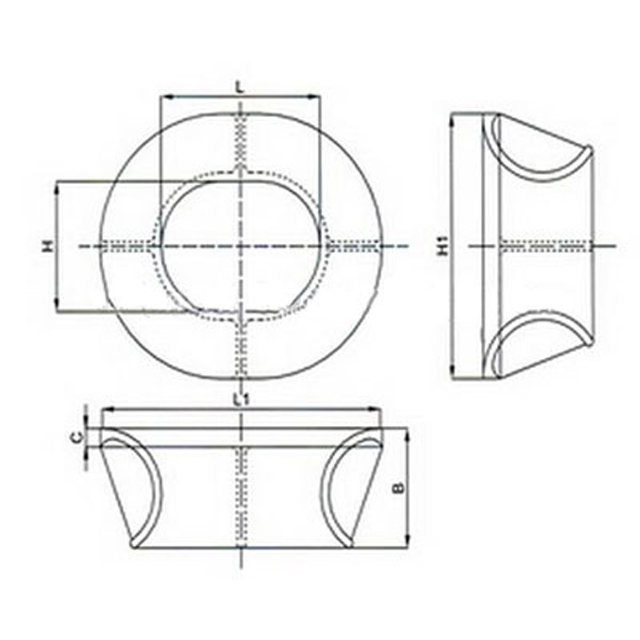

JIS F 2030-1978 Oval Single Point Mooring Pipe (Type A)
Nominal Size (mm)	Dimensions(mm)						Weight (kg)
	L	L1	H	H1	B	C
400	400	780	300	680	350	65	210
500	500	940	400	840	400	70	340
600	600	1100	450	950	450	75	490
700	700	1260	500	1060	500	80	600
800	800	1420	600	1220	550	85	880

Workshop Of JIS F 2030-1978 Single Point Mooring Pipe

Package Of JIS F 2030 Mooring Pipe

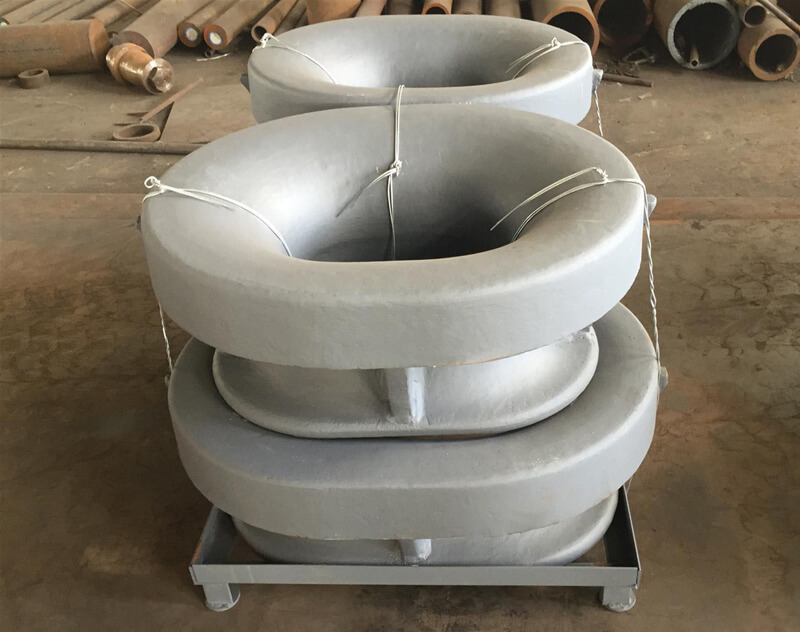

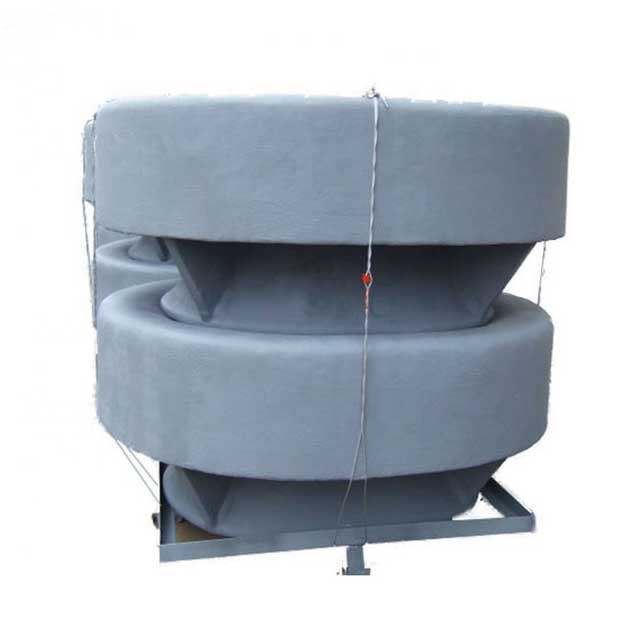

Packaged by steel pallets;
Packaged by wooden pallets;
Packaged within containers directly.
