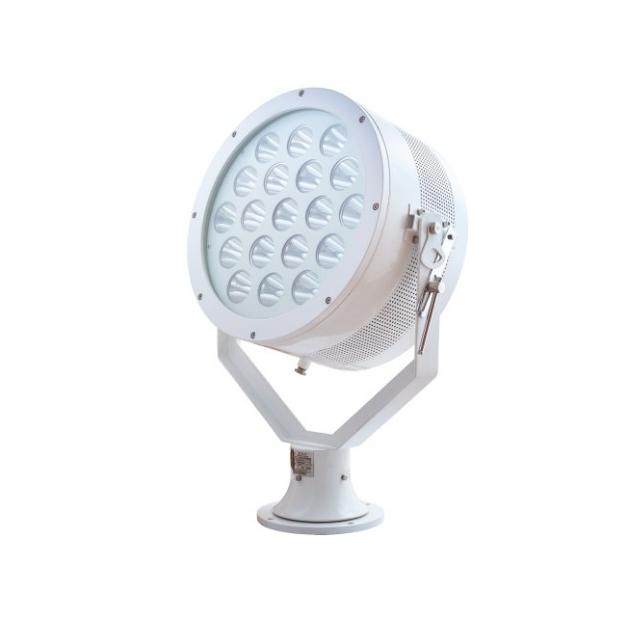

TZ2, TZ2-A Type Marine LED Searchlight


  • LED illuminant, 400W, the light illumination distance and effect are better than 1000W tungsten halogen lights, Irradiation distance more than 1000 meters.
  • Low-energy, high energy conservation and environmental protection, shock-proof, anti-corrosion, waterproof, super long illuminant working life.
  • The light body can handle pitch by ±30°, 350°horizontally automatic adjustment.

TZ2, TZ2-A Type Marine LED Searchlight

The marine LED searchlight is applied to far distance illumination and searching when in night navigation and can be widely used at the outdoor place of the boat, vessel, dock port and store place. It is a good device that will be advantageous for navigating rivers and lakes in dusky areas. This searchlight adopts a super-radiant LED. The LED comes with a sturdy plastic cover, which makes the device more durable and solid. There is no complex installation required and is convenient to replace the LED bulb. YSmarines is one of the leading suppliers in china for marine lighting products and the customer can purchase premium quality LED searchlight, the most competitive price guaranteed.

Product’s characteristic:

1. The LED searchlight will get up to normal brightness immediately when it is on, and it will quench at once when it is turned off.
2. The LED searchlight adopts a 19 pcs 10w high-power led lamp, the light power is low but the illumination distance and effect are better than 1000W tungsten halogen lights, Irradiation distance more than 1000meters, light intensity can as high as 1200000cd.
3. Illuminant adopts high-quality illuminant, working life as long as 50000 hours.
4. The LED starter has stabled components, to assure that the circuit has o long lifetime, and it has the protection for the short circuit and overload, to assure that the LED light works for the long term.
5. Low-energy, high energy conservation, and environmental protection, shock-proof, anti-corrosion, waterproof, super long illuminant working life.
6. It is very convenient to replace the LED bulb and the LED drive power supply.
7. The light body can handle pitch by ±30°, 350°horizontally automatic adjustment.
8. TZ2-A the shell can adjust the projection angle: pitching up ±35°, down ±35°, horizontally 350° by controller.

Production authentication:

1. TZ2 patent No. Is ZL 201310215530.3
2. TZ2-A patent No. Is ZL 201330223389.2

Type

TZ2

TZ2-A

Voltage

AC100~240V  50HZ/60HZ

Power

400W Illuminant

400W Illuminant, 120W electric motor

Illuminant

LED

Illuminant color

White

Illuminant life

≥50,000 hours

Color rendering index

≥70

Color temperature

5000K-6500K

Light intensity

2500000cd

Exposure distance

1500m

Adjustment method

Manual regulation

Electric regulation

Lamp shade material

Toughened glass

Protection class

IP 66

Material

Stainless steel 316L

Weight

75kg

116kg

Cable outside diameter

D9mm~11mm

D9MM~14MM

Ambient temperature

-30℃~+55℃.

Installation

The base type

Adjustment method

Horizontal rotation of 350°, pitch 30°

Annex



Controller

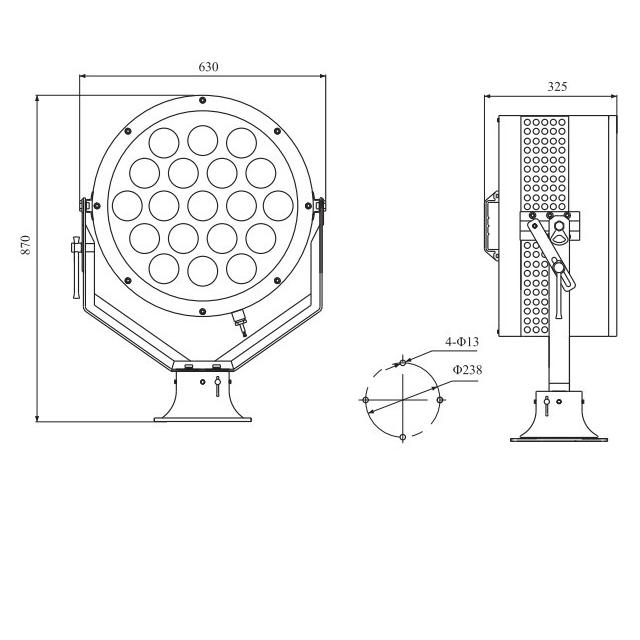

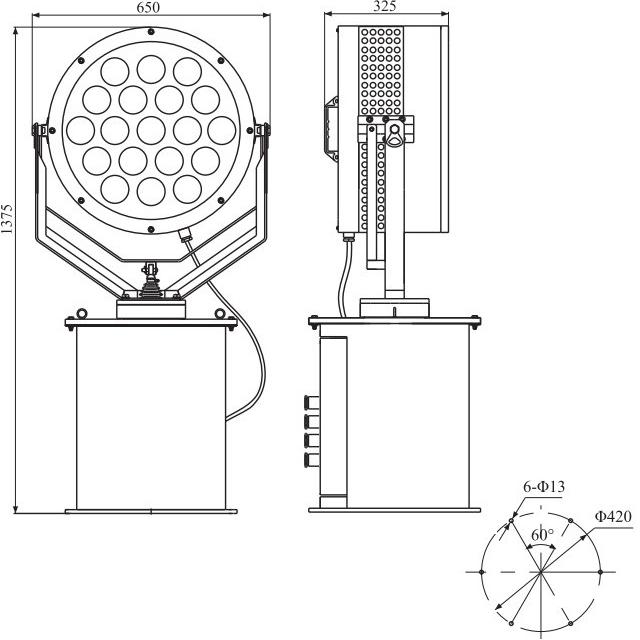

Drawings of TZ2, TZ2-A Type Marine LED Searchlight
LED illuminant, 400W, the light illumination distance and effect are better than 1000W tungsten halogen lights, Irradiation distance more than 1000 meters. Low-energy, high energy conservation and environmental protection, shock-proof, anti-corrosion, waterproof, super long illuminant working life. The light body can handle pitch by ±30°, 350°horizontally automatic adjustment.
