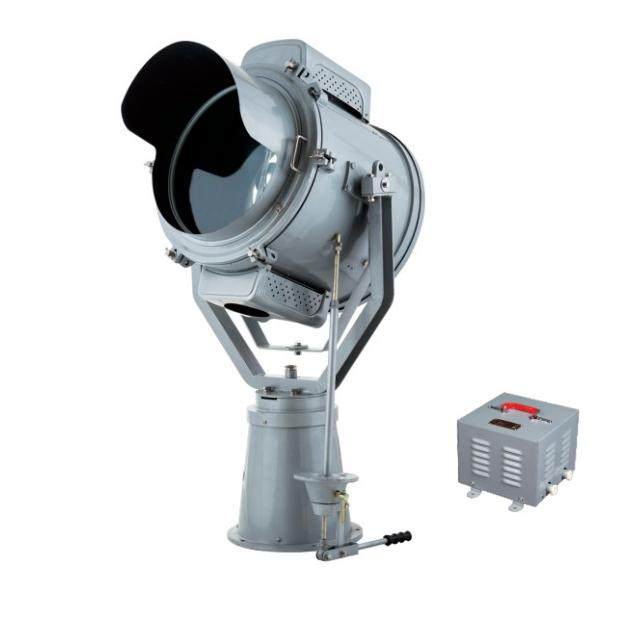

TZ1, TZ1-A Type Boat Searchlight


  • Applied to remote illumination of ship light navigation, life-saving, warning etc. And aim for searching.
  • DC 110V, AC 220V, Power 1000 W. With Sphericity mercury xenon lamp.

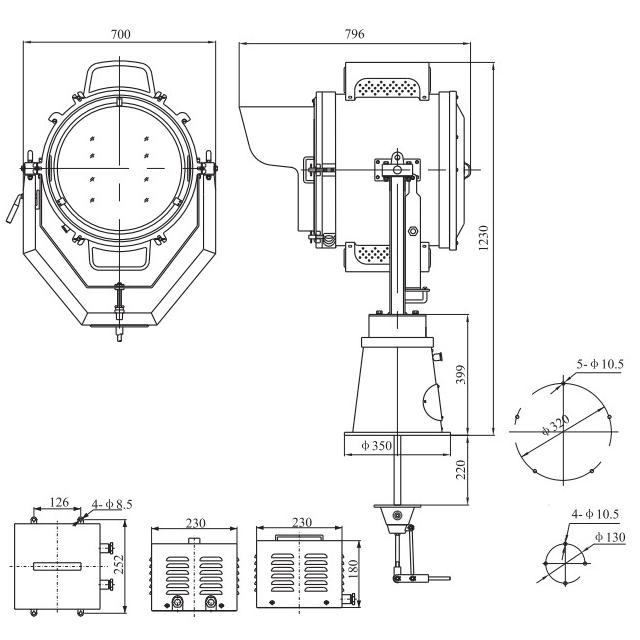

  • TZ1 It is stainless steel shell body, ball plate mounted on the base, also equipped with lifting gear.

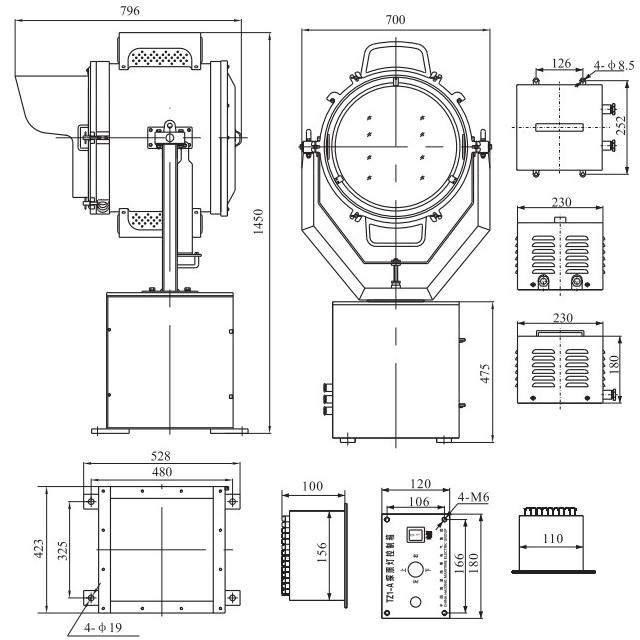

  • TZ1-A: a micro motor is mounted on the base.

TZ1, TZ1-A Type Boat Searchlight

The type of boat searchlight is widely used for the remote illumination of ship light navigation, life-saving, warning, etc. It is aimed at searching. It is equipped with a sphere toughened glass reflector. The device of focus adjustment, which can adjust the focus up and down, front and black neatly, and has the functions such as high luminous intensity, far illumination distance. The light is powerful enough to supply the illumination that boaters especially require. The marine searchlights provided by YSmarines are considered as one of the best searchlights with superb material, high standard security and modest prices.

Product’s characteristic:

1. TZ1 It is a stainless steel shell body, ball plate mounted on a base, also equipped with lifting gear which can control the light body by hand to rotate for 350°horizontally, and pitching 30°.
2. Equipped the electrical box when supply DC 110V, please remark clearly when ordering.
3. TZ1-A it with the stainless steel shell body, a micromotor is mounted on the base and can operate the light body to rotate for 350°horizontally, and pitching 30°by the controller.

Production authentication:

1. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.

Type

TZ1

TZ1-A

Voltage

DC110V, AC220V

Power

1000W

Illuminant

Sphericity mercury xenon lamp

Light intensity

≥3900000cd

Luminous flux

6000lm

Irradiation distance

≥1500m

Lamp holder type

For special use

Cable outside diameter

10mm~12mm

14mm~16mm

Protection class

IP 66

Material

Stainless steel 316L/steel

Stainless steel 316L

Weight

60kg

90kg

Ambient temperature

-30℃~+55℃.

Adjustment method

Horizontal rotation of 350°, pitch 30°

Adjustment method

Ballast box, lifter rod

Control box
