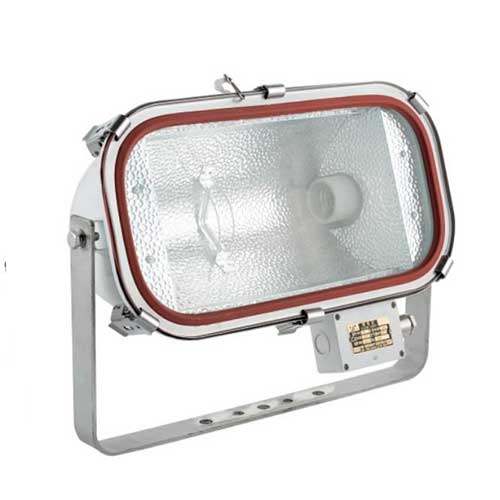

TG4, TG5, TG6 Type Marine Spotlight
- AC220V, 50HZ/60HZ, Power 250W, 400W, 500W, 1000W.
- With tungsten halogen lamp, High-pressure sodium lamp and Metal halide lamp illuminant. E40 lamp holder.
- Compact structure and beauty appearance, good seal and anti-corrosive performance.
TG4, TG5, TG6 Type Marine Spotlight
The type of marine spotlight is applied to projecting illumination in outdoor places such as a boat, dock, port, store place, and petroleum platform, etc. It is made of high standard stainless steel. The lampshade adopts toughened glass and high-purify alumina m reflector with an excellent reflecting effect. It has a compact structure and a beautiful appearance with a good seal and anti-corrosive performance. The light can be adjusted upside 90°, down 45°angle. YSmarines can supply marine spotlights for sale, superior quality and cheap price guaranteed.
Production authentication:
1. Conform to international IEC Norm and international standard GN7000.7-2005.
2. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.
| Type | TG4 | TG5 | TG6 | |
| Voltage | AC220V, 50HZ/60HZ | |||
| Power | 500W/1000W | 250W/400W | ||
| Illuminant | Tungsten halogen lamp | High-pressure sodium lamp | Metal halide lamp | |
| Lamp holder | E40 | |||
| Luminous flux | 8500lm/22000lm | 26000lm/47000lm | 25000lm/36000lm | |
| Cable outside diameter | 10mm~12mm | |||
| Protection class | IP 67 | |||
| Material | 316 stainless steel | |||
| Weight | 6kg | 8kg | ||
| Ambient temperature | -30℃~+55℃. | |||
| Adjustment method | Up 90°, down45° |
|
| |
| Annex | Illuminant type JTT | Ballast box | ||
