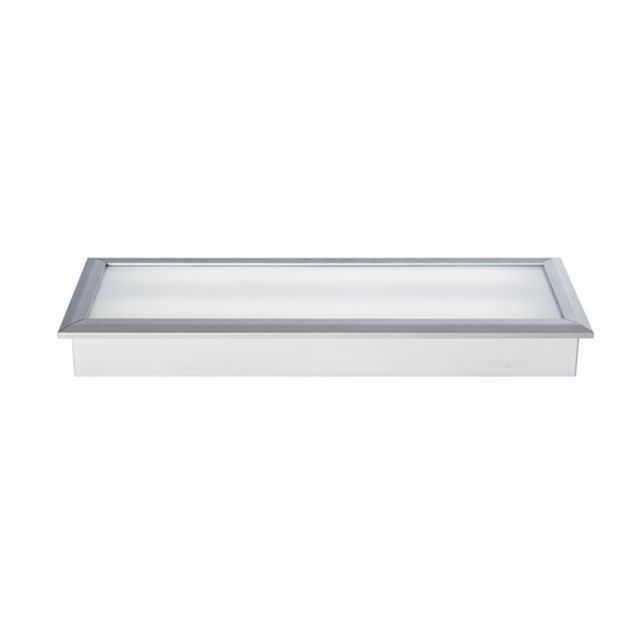

JPY27-2L, JPY47-2L Type LED Marine Ceiling Light


  • AC100V~240V, 50HZ/60HZ, Power 2*8W, 2*18W.
  • The installation way of the light is recessed-type, And the lamp shade is made of good quality organic, not discolor, fine toughness, softness ray.
  • It adopts good LED lamp, with high light efficiency, the long working life.
  • The lamp equipped B15 lamp holder, used for 24V/3W emergency bulb.

JPY27-2L, JPY47-2L Type LED Marine Ceiling Light

The marine lighting is equipped with an LED light source and is applicable in the general cabins or inner aisles of ships, such as living compartments, restaurants, cabs, and wireless cabins etc. The enclosure of the lamp is made of a high-quality steel plate. The good LED lamp has high light efficiency and environmental protection with a working life of over 50,000 hours. YSmarines offers LED ceiling light for sale with high luminous efficiency, the feature of color rendering, reasonable configuration, unidirectional lighting, etc.

Product’s characteristic:

1. The installation way of the light is recessed-type, compact structure and delicacy appearance.
2. The lampshade is made of good quality organic, not discolor, fine toughness, softness ray.
3. The LED starter has stabled components to assure that the circuit has a long lifetime, and it has a protection for the short circuit and overload, to assure that the LED light for a long term.
4. The lamp equipped B15 lamp holder, used for 24V/3W emergency bulb, the edge of lampshade marks the marking remark clear that needs the emergency device when order.

Production authentication:

1. Approved by the CCS (CHINA Classification Society)
2. The patent NO. is ZL201420020216.X.
3. Adopt IEC60092-306-2009 standard, GB7000.1, GB7000.10, GB17743, GB19510.1, GB19510.14.

Type

JPY27-2L

JPY27-2EL

JPY47-2L

JPY47-2EL

Power

2*8W

2*8W+24V/3W

2*18W

2*18W+24V/3W

Weight

5.6KG

5.8KG

10.2KG

10.4KG

Voltage

AC100V~240V, 50HZ/60HZ

Illuminant

LED

Luminous flux

1100lm

2400lm

Protection class

IP44

Ambient temperature

-30~+55.

Life source life

≥50,000 hours

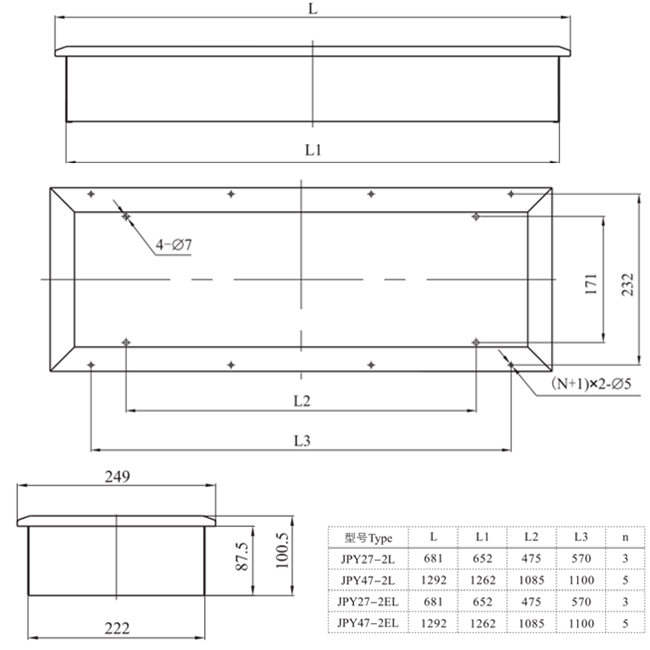

Drawings of JPY27-2L, JPY47-2L Type LED Marine Ceiling Light
