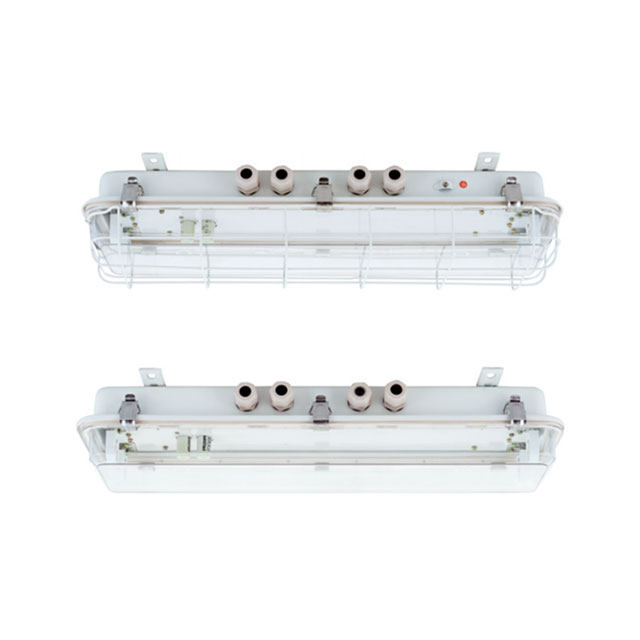

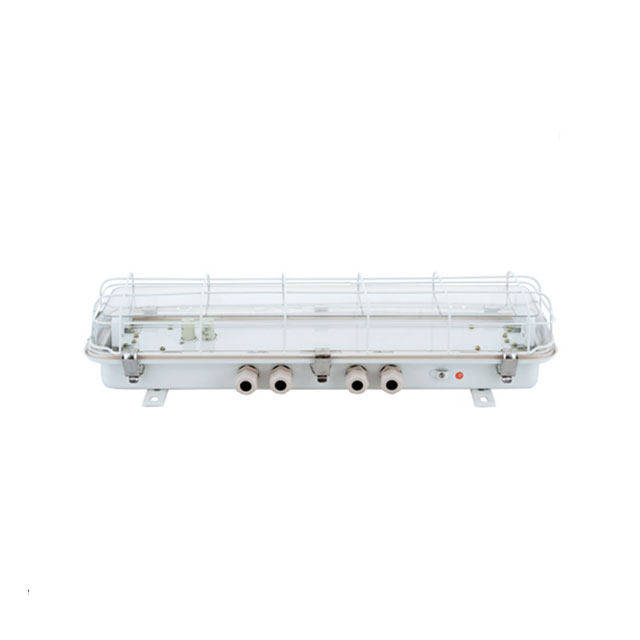

JCY24-2J, JCY44-2J Type Marine Fluorescent Pendant Light


  • The shell adopts good quality steel plate tensioned, lamp shade adopts injection of PC, and it has the seal structure.
  • Plug-in type lamp holder , equipped wiring terminal inside, convenient to connect.
  • The lamp equipped G13 lamp holder. used for 24V/15W emergency bulb.

JCY24-2J, JCY44-2J Type Marine Fluorescent Pendant Light

The marine fluorescent light is a pendant type. It can be widely used for the illumination of water dripping, water spattering, water coagulating place in ships. Fluorescent lamps can be divided into many types in accordance with the local where they used in including pendant light, ceiling light, corner light and other more ones. The fluorescent light is a shockproof type and is equipped with the shock to absorb inside. The lampshade adopts a PC, which has the features of non-discolor and fine softness. YSmarines has years of experience in the production and supply of marine lighting and can provide fluorescent pendant light with high standard material at a reasonable price.

Product’s characteristic

1. The shell adopts the steel plate tensioned.
2. The lamp equipped G13 lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the marking remark clear that needs the emergency device when order.
3. The environmental temperature for work is -30℃~+55℃.

Production authentication:

1. Conform to the National Army Standard (GJB 4000-2000 MARINE ELECTRIC NORMS 3 group power system and CB1246-94 MARINE ILLUMINANTE LIGHTS COMMONLY USED NORMS).

Type

JCY24-2J

JCY24-2EFJ

JCY44-2J

JCY44-2EFJ

Power

2*20W



2*40W



Weight

7.2KG



11KG



Voltage

110V/60HZ, 220V/50HZ, 220V/60HZ

Power factor

>0.85

Lamp holder

G13

Cable outside diameter

14mm~16mm

Protection class

IP56

Remark



With guard



With guard

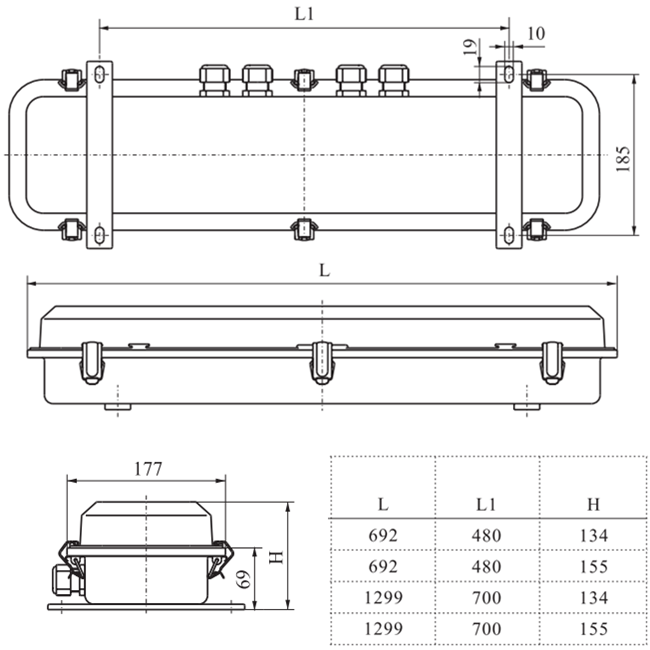

Drawings of JCY24-2J, JCY44-2J Type Marine Fluorescent Pendant Light
