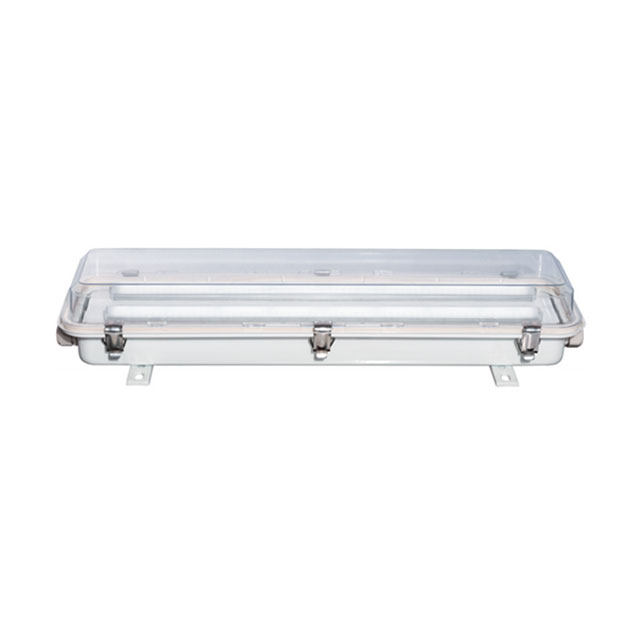

JCY21-2L, JCY41-2L Type LED Pendant Light for Marine


  • The shell adopts good quality steel plate tensioned, lamp shade adopts injection of PC, and it has the seal structure.
  • The lamp body has compact structure and delicacy appearance, adopt the import spin-type of lamp holder, and it is convenient to connect inside.
  • Equipped with LED lamps, with high light efficiency, the long working life.

JCY21-2L, JCY41-2L Type LED Pendant Light for Marine

The LED pendant light fits for illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck, etc. The shell adopts a good quality steel plate tensioned. The lampshade adopts the injection of PC with a seal structure. The lamp body has a compact structure and delicacy appearance, adopting the import spin-type of the lamp holder, convenient to connect inside. YSmarines is one of the professional marine lighting suppliers in China and will bring customers superb LED pendant light, cheap price guaranteed.

Product’s characteristic:

1. Equipped with LED lamps, with high light efficiency, the working life can be over 50,000 hours.
2. The LED starter has stabled components, to assure that the circuit has a long lifetime, and it has the protection for the short circuit and overload, to assure that the circuit LED light works for the long term.
3. The environmental temperature for work is -30℃~+55℃.

Production authentication:

1. The product approved by the CCS (CHINA Classification Society)
2. Adopt IEC60092-306-2009 standard, GB7000.1, GB7000.10, GB17743, GB19510.1, GB19510.14.
3. Conform to GRADE ENTRY NORMS FOR STEEL SHIP, the patent no is ZL2004 30018 543.3.

Type

JCY21-2L

JCY21-2EL

JCY41-2L

JCY41-2EL

Power

2*8W

2*8W+24V/3W

2*18W

2*18W+24V/3W

Weight

4KG

4.2KG

7.4KG

7.6KG

Voltage

AC100V~240V  50HZ/60HZ

Illuminant

LED

Luminous flux

1350lm

3100lm

Cable outside diameter

10mm~14mm

RA

≥85

Color temperature

4000K~6500K

Protection class

IP 66

Ambient temperature

-30℃~+55℃.

Light source life

≥50000 hours

Installation

Ceiling type

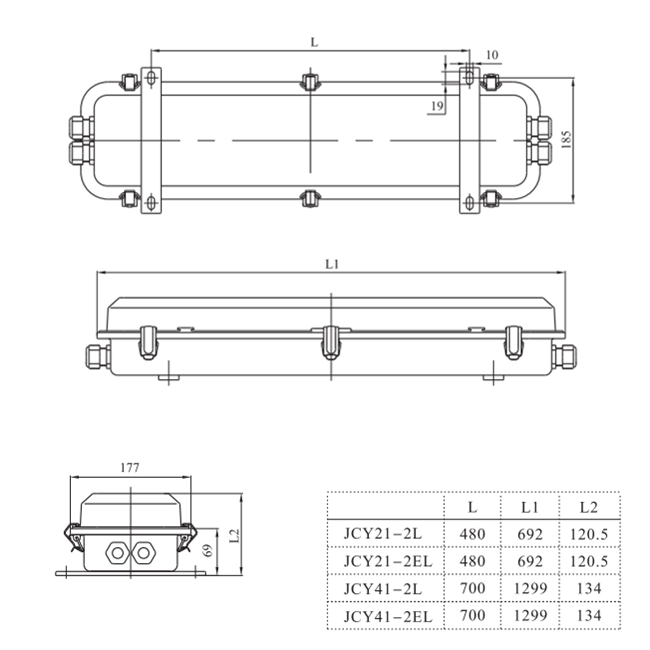

Drawings of JCY21-2L, JCY41-2L Type LED Pendant Light for Marine
