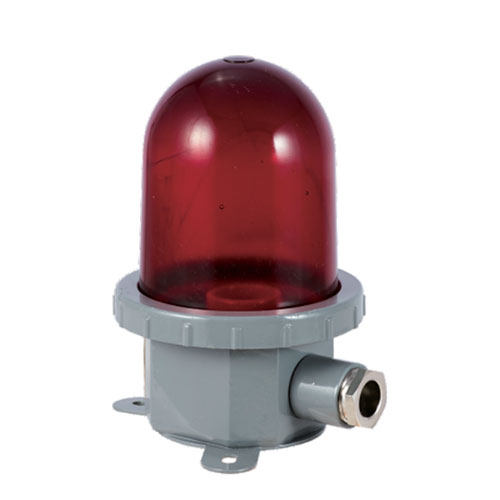

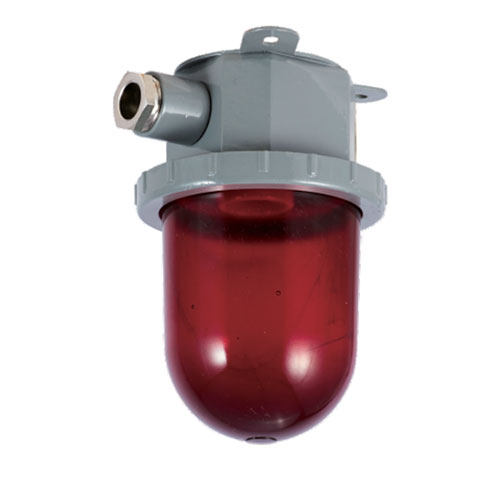

CXH11 Type SUEZ Canal Signal Light
- Applied to the ships with the length 50m or above 50m as lamp signal liaise.
- For the signal identification for navigation and for-rules of SUEZ Canal.
- 24V/110V/220V, power 60W. With a B22d lamp holder.
- Suitable for cables with an outside diameter of 8mm~10mm.
- Many colors: White, Red, Yellow, Green, Blue.
CXH11 Type SUEZ Canal Signal Light
The type of signal light is used for the signal identification of navigation depending on the rules of the SUEZ Canal. The shell is made of superior quality stainless steel with the feature of corrosion-resisting, shock resistance, etc. It is designed in different colors for all general warning purposes. They fulfill all requirements of IMO Anti Collision Regulations and local rules. The light is all-around signaling lights with special plastic housing. YSmarines is a professional marine lighting supplier and provides design, construction, maintenance, etc for signal lights.
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.
| Type | CXH11 |
| Voltage | 24V/110V/220V |
| Power | 60W |
| Lamp Holder | B22d |
| Visibility | 3n.m |
| Environmental temperature | -30℃~55℃ |
| Cable outside diameter | 8mm~10mm |
| Protection class | IP56 |
| Color | White, Red, Yellow, Green, Blue |
| Weight | 3.8KG |
| Material | Silicon brass |
