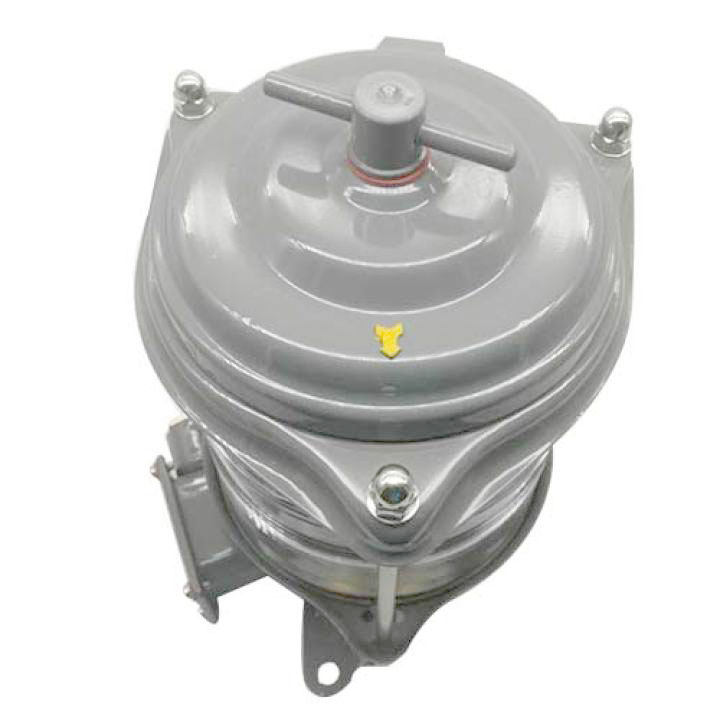

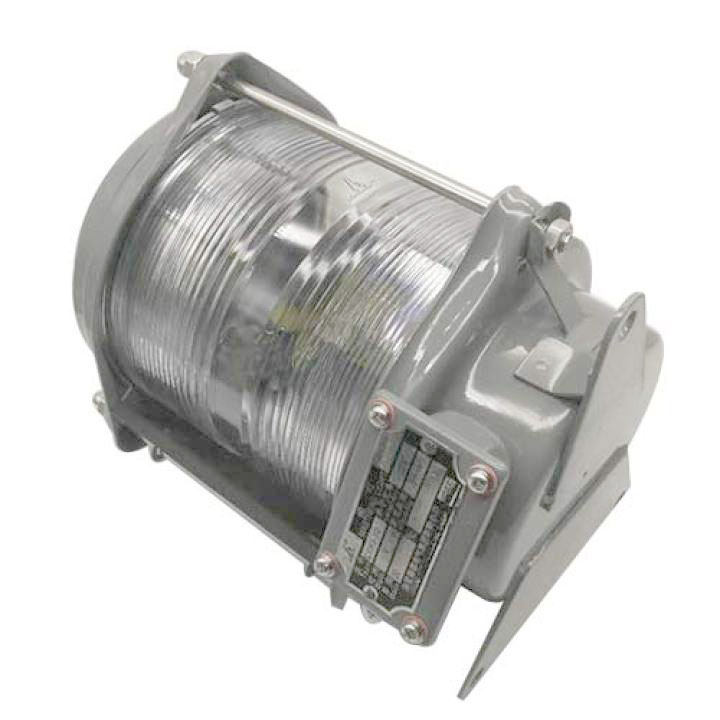

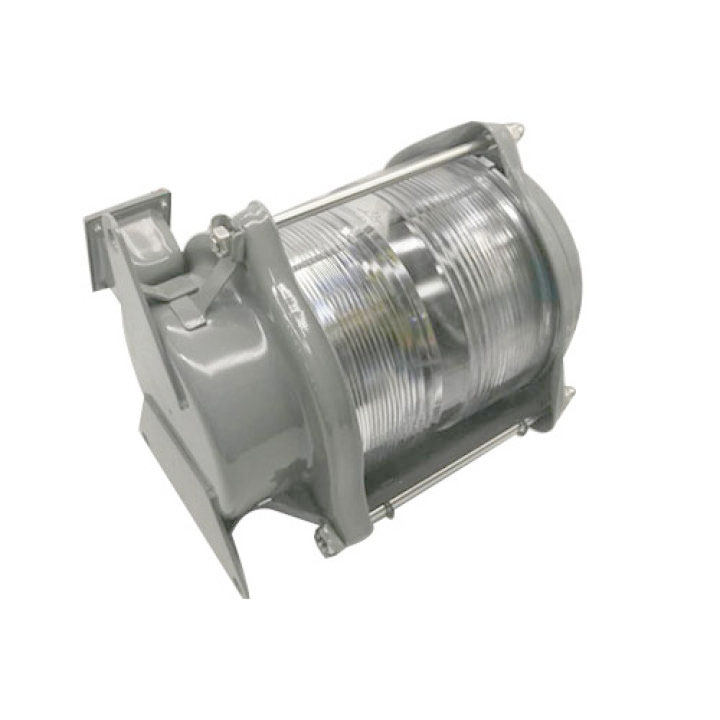

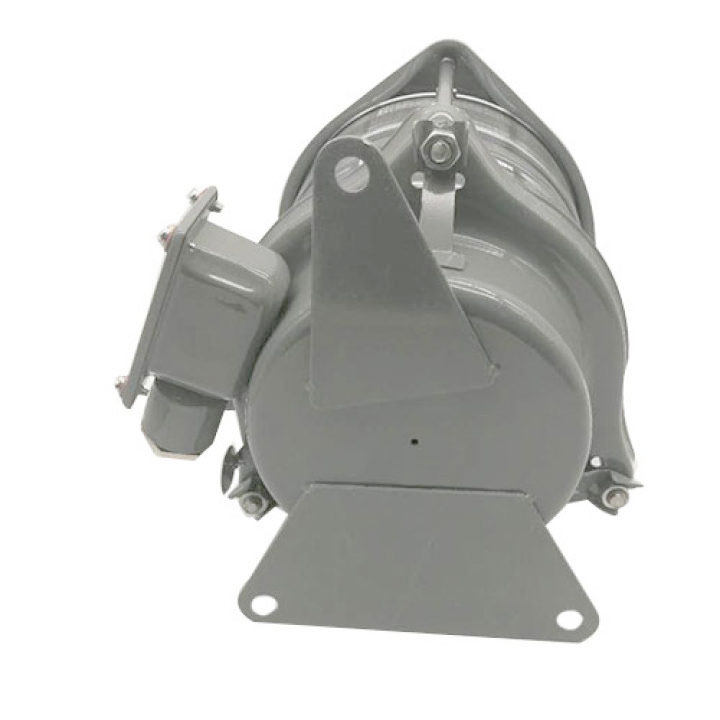

CXH-1D Type Boat Navigation Lights
- Applied to the ships with the length 50m or above 50m as lamp signal liaison.
- Starboard light, port light, masthead light, stern light, all-around light.
- This navigation signal light’s the shell is made of the good quality metal material steel, the structure is painted the special mold-powder, the lamp shade adopts polycarbonate.
CXH-1D Type Boat Navigation Lights
The boat navigation lights are applied for the ships with the length 50m or above 50m and work as the lamp signal liaise for night navigation. The light is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom. The shell is made of good quality metal material steel and the structure is painted the special mold-powder. It has the feature of corrosion-resisting and shock resistance. The lampshade adopts polycarbonate with ultraviolet radiation resistance. It can work normally under the temperature of -30℃ to 55℃.
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.
Production authentication:
1. Approved by CCS (CHINA CLASSIFICATION SOCIETY) and ZY of China Fishery Inspection.
|
Name |
Type |
Visible |
Level Arc | Cable outside diameter |
Power |
Voltage |
Material | Lamp Holder | Protection Class |
Color |
Weight |
| Starboard light | CXH1-1D | 3n.m | 112.5° | Φ12~16 |
60W 65W |
AC110 AC220V DC24V |
Steel, PC |
B22d |
IP56 | Green |
4.9KG |
| port light | CXH2-1D | 3n.m | 112.5° | Φ12~16 | Red | ||||||
| masthead light | CXH3-1D | 6n.m | 225° | Φ12~16 | transparent | ||||||
| stern light | CXH4-1D | 3n.m | 135° | Φ12~16 | transparent yellow | ||||||
|
All-round light | CXH6-1D |
3n.m |
360° |
Φ12~16 | Green Red transparent |
