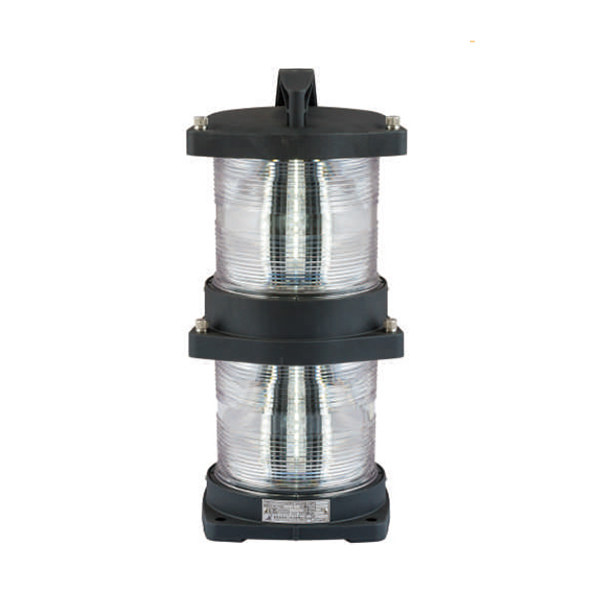

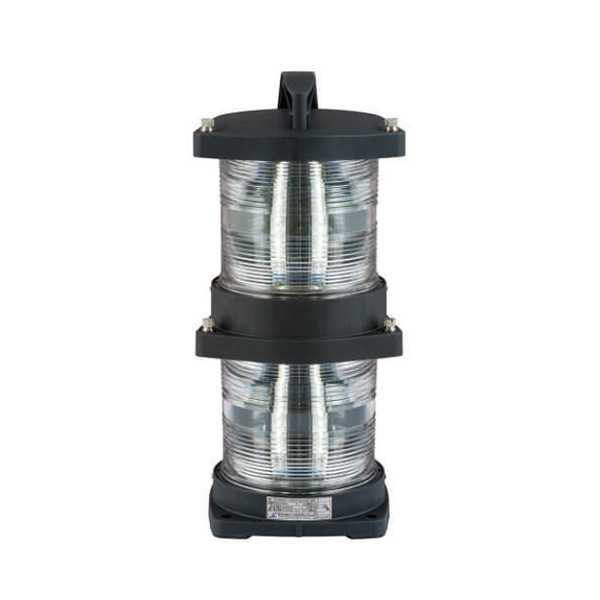

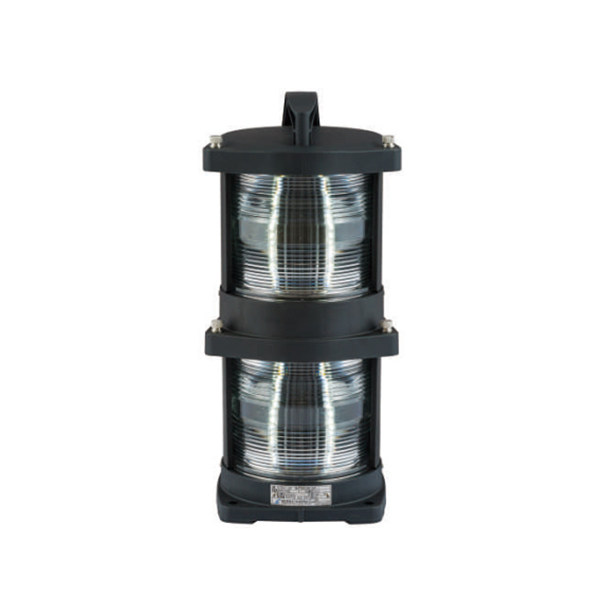

CXH-102PL Type Double-deck LED Boat Navigation Lights
- Applied to the ships with the length 50m or above 50m as lamp signal liaison.
- AC100~240V 50HZ/60HZ DC24V, power 2* 6W.
- Suitable for cables with outside diameter of 10mm~12mm.
- The whole seal structure, waterproof, LED light source;
CXH-102PL Type Double-deck LED Boat Navigation Lights
The LED boat navigation lights are double-deck type and can be used to send an alarm when there is a short circuit and when the Led loses brightness without shutting down. It is convenient to install and replace the bulb with automatic leakage holes in the bottom. The shell adopts high standard metal material steel. The surface is painted with the special mold-powder with corrosion-resisting and shock resistance. They adopt the special LED light source with energy-saving and long service life and can work under the temperature of -30℃ to 55℃. The LED boat navigation lights are for sale at YSmarines at the most competitive prices.
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC 60598-1-2008.
3. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.
Production authentication:
1. Approved by CCS (CHINA CLASSIFICATION SOCIETY) and ZY of China Fishery Inspection.
2. Approved by MED/EC.
3. The patent no is ZL 201630058160.1.
| Name | Type | Visible | Level Arc | Cable outside diameter | Power | Illuminate | Voltage | Protection Class | Color | Weight |
| Double-deck starboard light | CXH1-102PL | 3n.m | 112.5° | Φ10~14 | 2*6W |
LED |
AC100~240V 50HZ/60HZ DC24V
|
IP66 | Green | 6.2kg |
| Double-deck port light | CXH2-102PL | 3n.m | 112.5° | Φ10~14 | 2*6W | Red | 6.2kg | |||
| Double-deck masthead light | CXH3-102PL | 6n.m | 225° | Φ10~14 | 2*8W | White | 6.2kg | |||
| Double-deck stern light | CXH4-102PL | 3n.m | 135° | Φ10~14 | 2*6W | white yellow | 6.2kg | |||
|
Double-deck all-round light |
CXH6-102PL |
3n.m |
360° |
Φ10~12 |
2*6W | Green Red white |
6.0kg |
