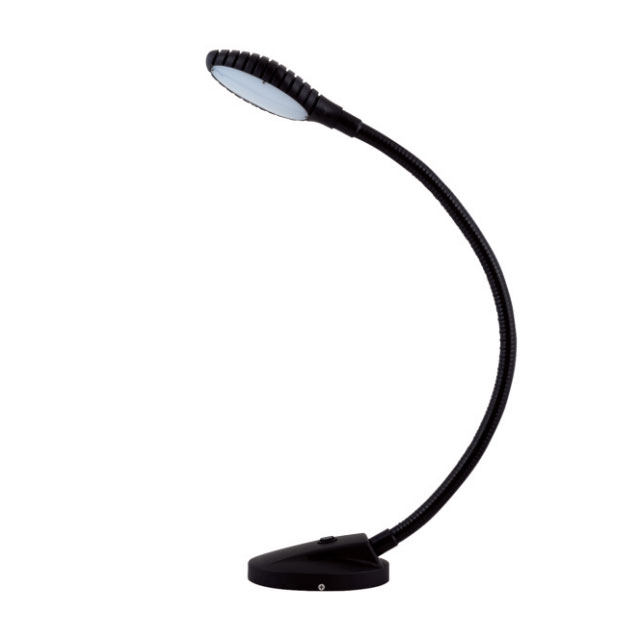

CHT5-L Type LED Chart Light
- LED illumination, the working life can get up to 50,000 hours.
- Energy-saving, environment-friendly, soft ray of light.
- The LED chart light can adjust up and down, left and right.
- Equipped with dimmer, it can adjust high-low luminance.
CHT5-L Type LED Chart Light
The LED chart light can be used to be illuminate areas normally difficult to reach of boat, yacht, or other marine vessels. Its warm LED provides bright illumination for reading with energy-saving, environment-friendly and the working life can get up to 50,000 hours. It features a different look and basic on/off function. The head of marine light adopts aluminum alloy, weight light and high intensity. YSmarines carries a wide selection of marine chart lights to match the interior trim of the boat, ship, yacht, etc, excellent quality and best prices guaranteed.
Product’s characteristic:
1. The lampshade adopts good quality milk-white PC material, a soft ray of light.
2. The LED starter has stabled components, to assure that the circuit has a long lifetime, and it has the protection for the short circuit and overload, to assure that the LED light work for the long term.
3. The LED chart light can adjust up and down, left and right.
4. Equipped with dimmer, it can adjust high-low luminance
5. The environmental temperature for work is -30℃~+55℃.
Production authentication:
IEC60092-306, GB7000.1, GB7000.201, GB17743, GB19510.1, GB19510.14.
| Type | CHT5-L |
| Voltage | 100V~240V, 50HZ/60HZ, DC24V |
| Power | 6W (high) , 1.5W(low) |
| Illuminate | LED |
| Cable outside diameter | 8mm~10mm |
| environmental temperature | -30℃~+55℃ |
| Protection class | IP20 |
| Installation way | Wall type |
| Weight | 1.9KG |
