Marine Aluminum Cabin Door
Marine Aluminum Cabin Door
Marine Aluminum Cabin Door
  • Marine Aluminum Cabin Door
  • Marine Aluminum Cabin Door
  • Marine Aluminum Cabin Door

    • Marine Aluminum Cabin Door

    • Material: Aluminum
    • Application: can be used in ship cabin, floating construction and gateway with class C fire rated
    • Optional: fixed light, louver,kick-out panel. Lock, door stopper, door closer
    • Available certificates: GL, DNV, CCS, BV, ABS, LR, KR, RS, etc.

    Marine Aluminum Cabin Door

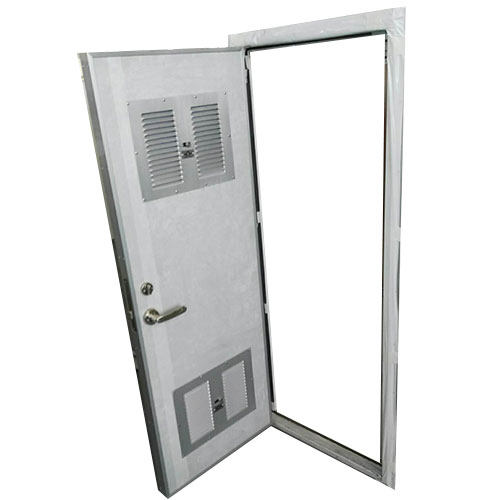

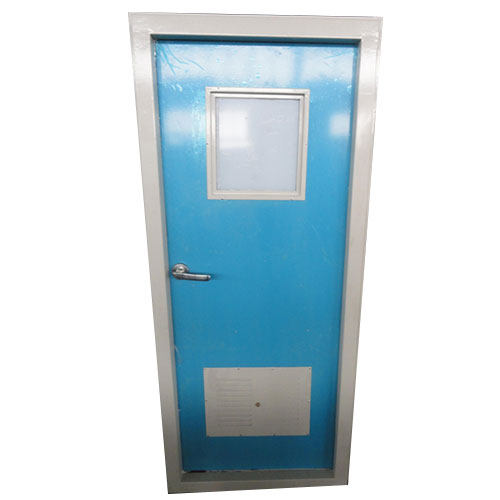

    The aluminum marine door is used for the cabins of various ships and warships, floating construction and gateway with class C fire rated. The surface of the door is anodized baking finish or PVC covered. It meets the standard of CB/T3281-1997. There will be 4 different types of cabin hollow doors including standard aluminum hollow cabin door, the door with fixed light, the door with vent, the door with an emergency escape hole. All marine cabin doors produced by YSmarines have the certificate of GL-DNV, CCS, BV, ABS, LR, KR, RS, etc and are available in a natural finish, primed or coated in accordance with the client request. Sizes and colors also can be customized.

    Class Opening Size of Door Way Frame Size Size of B.H. Opening D Weight
    B*L B1*L1 B1*L2 more than 75 KG
    A

















    LO

    RO

    LI

    RI

    		 600*1600 680*1680 686*1686























    T+45

    		 23.6
    650*1650 730*1730 736*1736 24.97
    700*1750 780*1830 786*1836 36.83
    800*1750 880*1830 886*1836 28.62
    B 600*1600 680*1680 686*1686 34.51
    650*1650 730*1730 736*1736 35.88
    700*1750 780*1830 786*1836 37.78
    800*1750 880*1830 886*1836 39.71
    C 600*1600 680*1680 686*1686 24.61
    650*1650 730*1730 736*1736 26
    700*1750 780*1830 786*1836 27.87
    800*1750 880*1830 886*1836 29.76
    D 600*1600 680*1680 686*1686 26.72
    650*1650 730*1730 736*1736 28.41
    700*1750 780*1830 786*1836 29.8
    800*1750 880*1830 886*1836 31.73
