• Staghorn Bollard(Twin Horn Dock Bollard)

    • Material: Cast Iron or Cast Steel
    • Type: Staghorn(or Twin Horn) Head Type
    • Installation Method: By Anchoring Bolts
    • Capacity: 10Ton to 200Ton

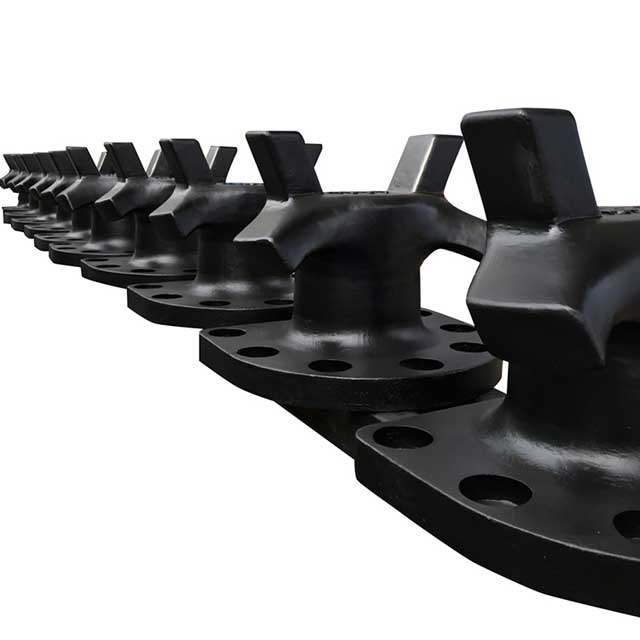

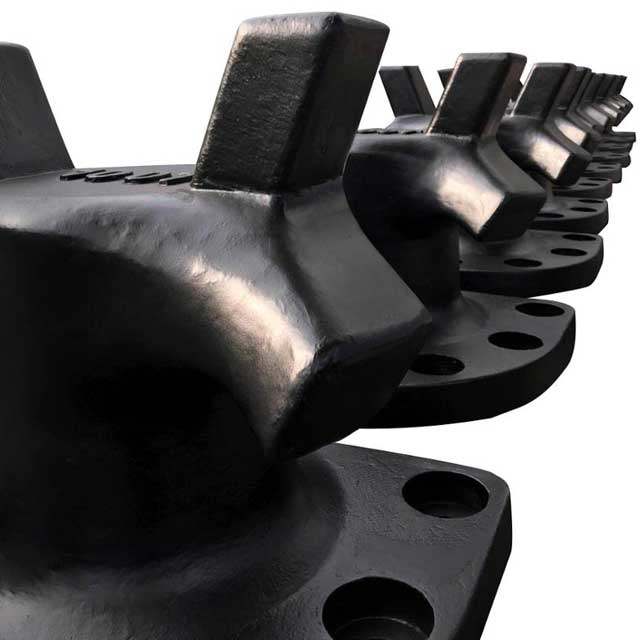

    Staghorn Dock Bollard (Twin Horn Dock Bollard)


    Staghorn bollard also called twin horn dock bollard or double horn bollard is a staghorn-shaped type dock mooring bollard. It is commonly used to guarantee the security of marine vessels by mooring ropes. The bollard is supplied with different anchor systems: anchor rods with end-plates and nut fixing for new concrete, anchor rods with epoxy grout and nut fixing for existing concrete and cast-in anchor systems with break-off bolts. It can handle higher line load angles than single bitt and kidney bollards. This feature may be of particular importance where very large changes in water level result in significant differences in inline angles. Ysmarines is a leading China manufacturer of staghorn bollard.

    The staghorn dock bollard (or twin horn dock bollard) is also supplied with different base types, such as hexagon type base, round type base, square type base and semi-circle type base, which can be confirmed by the concrete of the dock, port or jetty design and application environment. The following corrosion protection systems are offered: premiered only, painted with primer and 2-component epoxy layer & topcoat, galvanized, galvanized and painted (duplex). YSmarines is a leading China manufacture for superior quality staghorn dock bollard.

    Features Of Staghorn Dock Bollard


    ●Wide range of base shapes for choice;
    ●Beautiful appearance design;
    ●Various anchoring systems for choice;
    ●Staghorn (or twin horn) head design to allow higher rope angle and two rope lines work;
    ●A wide range of corrosion protection are offered

    Model No.

    Dimensions (mm)

    Bolts

    Capacity (T)



    A

    B

    C

    D

    E





    S01

    41

    291

    348

    330

    381

    M24*4

    10

    S02

    45

    320

    394

    362

    419

    M24*4

    15

    S03

    49

    349

    430

    381

    442

    M24*5

    20

    S04

    55

    392

    483

    429

    497

    M30*5

    30

    S05

    59

    419

    516

    457

    530

    M36*5

    50

    S06

    71

    489

    627

    556

    645

    M42*6

    75

    S07

    81

    559

    717

    635

    737

    M42*7

    100

    S08

    90

    615

    788

    699

    810

    M48*7

    125

    S09

    98

    671

    860

    762

    884

    M48*7

    150

    S10

    102

    699

    896

    794

    921

    M56*8

    200

    Applications Of Staghorn Bollard


    Container & Bulk Terminals
    Oil & Gas Terminals
    GeneralCargo Terminals
    Cruise Terminals, Ferry & RoRo Terminals
    Navy
    Other types of the port facility

    FAQ About Staghorn Bollard


    1. Can you supply OEM or ODM service?
    A: Yes, we have a great research & development team. The staghorn dock bollard (or twin horn bollard) can be customized according to your request.

    2. How to choose a dock bollard?
    A: You can choose the dock bollard regarding the following parameters: shape, material quality, anchoring system, corrosion protection, safety factors and design methods.

    3. Can you provide the relevant documentation and certificate?
    A: Yes, we can provide you with the documentation and certificates you need, such as CO, Form E, Form F, Mill’s certificates, CCS, BV, etc.

    4. What is your term of delivery?
    A: We accept EXW, FOB, CIF, DDU and DDP, etc. You can choose the one that is the most convenient for you.
