    • Anchor weight: 210kg to 20000kg(Type SR). 100KG to 26000KG(CB711-95), 80KG to 20000KG( Type M)
    • Material: ZG200-400 cast steel
    • Mold type: CB/T 711-95, Type M, Type SR spek anchor
    • Finishing: black painting, hot dip galvanized
    • Certificate: DNV-GL, BV, LRS, ABS, RINA, IRS, RS, CCS, KR, NK etc.

    Spek Anchor

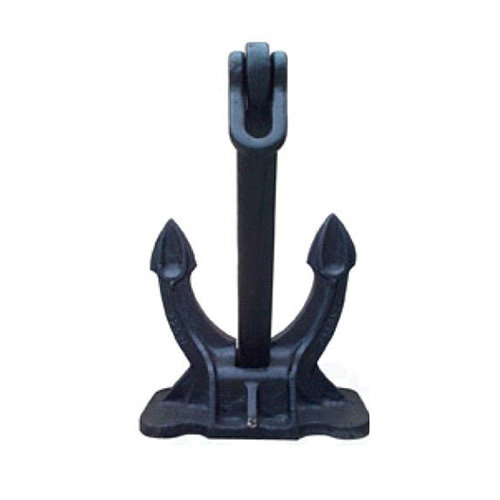

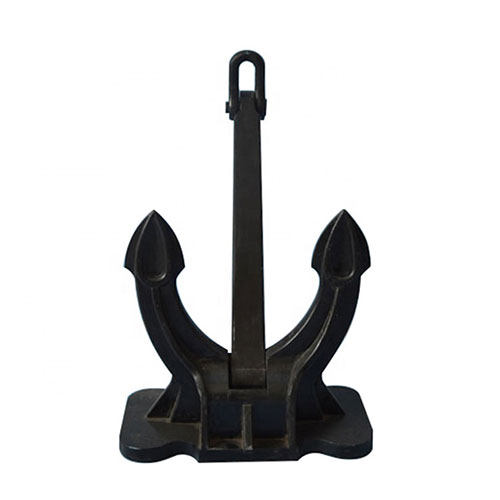

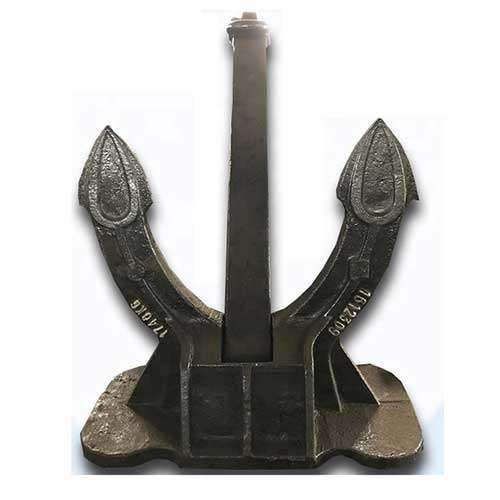

    Spek anchor is one type of stockless anchor. It is the improved anchor with a lower point of gravity from the hall anchor, whose core of the anchor head is located in the center of the pin centerline to the bottom. The structure of spek anchor is characterized that there is anchor crown plate and reinforcing ribs at the anchor crown. The anchor claw is easy to turn to the ground and then has better stability. The smart design makes it a perfect fit for the anchor pocket. And the anchor flukes will keep naturally upwards and overturn immediately when touching the hull plate to avoid damaging the shell plating. YSmarines is one of the most professional suppliers in china for superior quality speak anchor with reliable price.

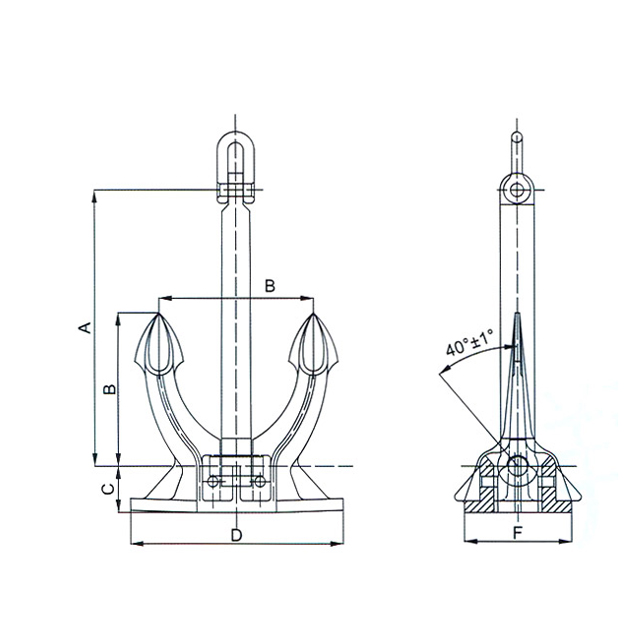

    Drawings of Spek Anchor
    Nominal Weight(kg) A B C D F
    100 672 373 112 515 250
    150 770 428 128 590 290
    180 846 470 140 640 300
    240 900 500 150 690 350
    300 990 550 166 760 398
    360 1065 600 180 828 411
    420 1080 600 180 828 431
    500 1170 650 196 900 450
    570 1170 650 196 900 475
    660 1260 700 210 962 486
    780 1355 750 225 1032 519
     900 1440  800  240 1100  547
     1020  1530  850  252  1170  573
     1140  1620  900  268  1240  591
     1290  1710  900  268  1240  620
     1440  1710  950  279  1300  640
     1590  1710  950  279  1300  671
     2100  1890  1050  312  1454  717
     2280  2010  1050  312  1454  736
     2850  2070  1150  352  1584  804
     3060  2160  1200  360  1650  820
     3780  2430  1350  393  1850  880
     4320  2520  1400  413  1926  917
     5250  2610  1450  414  2000  964
     6900  2790  1550  456  2138  1034
     7800  2920  1550  456  2138  1091
     8700  3060  1700  510 2332  1156
     9900  3160  1700  510  2332  1188
     14100  3440  1910  573  2632  1353
     18800  3950  2190  657  3018  1461
     20000  4070  2190  657  3018  1493
     26000  4250  2360  716  3256  1618
