JIS-F3301 Stockless Anchor
- Material: ZG200-400 casting steel
- Weight: 100kg to 46000kg
- Finishing: black painting or hot dip galvanized
- Certificate: DNV-GL, ABS, LRS, BV, KR, NK, RS, IRS, RINA, CCS etc.

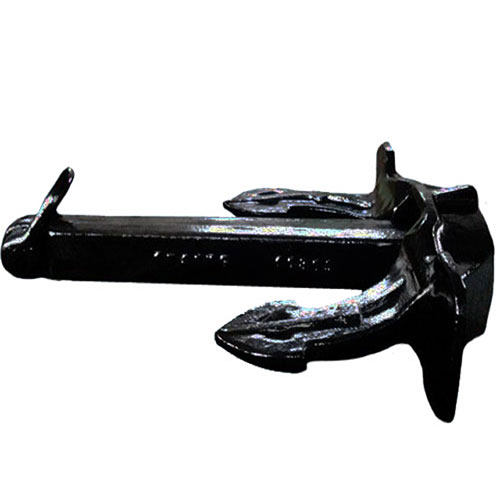

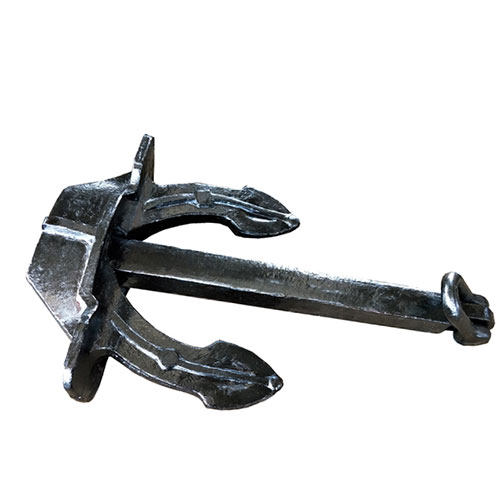

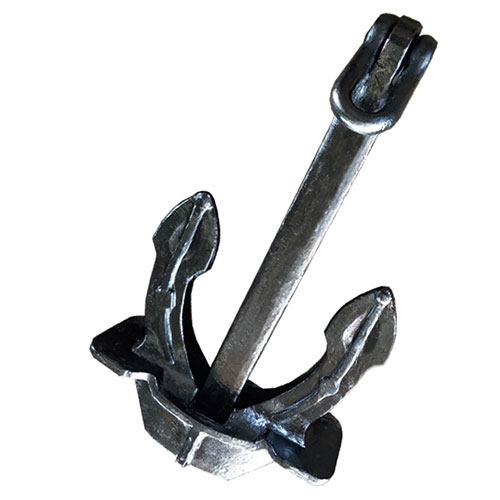

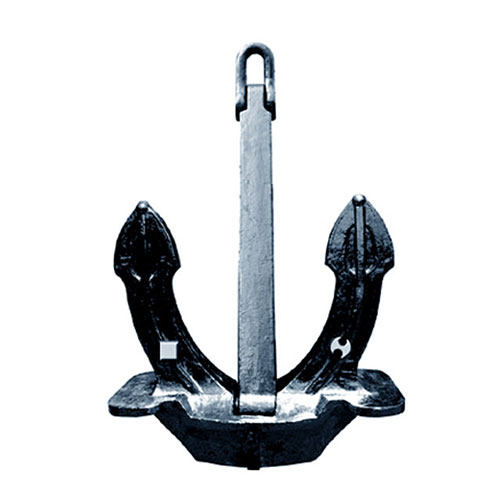

JIS Stockless Anchor
The JIS stockless anchor is made according to the Japanese industrial standard JIS-F3301. It is a normal type of stockless anchor with a small ball on a fluke. With the stockless design, it fits the anchor pocket perfectly. It is commonly used in commercial vessels and recreational craft. It is made high quality cast carbon steel and is a great mooring device for fishing boats due to the large holding power and easy storage. YSmarines supply the JIS Stockless for sale in china with safety, high quality, professional and fast delivery.

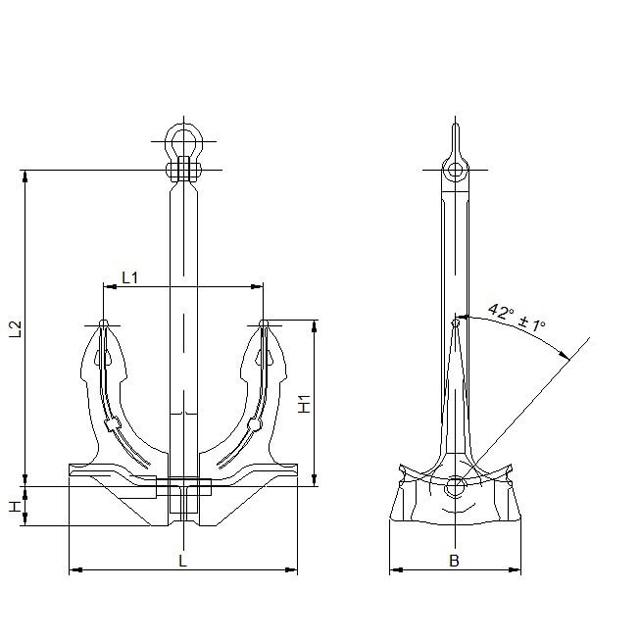

| Nominal Weight(kg) | L | L1 | L2 | H | H1 | B |
| 100 | 540 | 378 | 750 | 91 | 395 | 230 |
| 125 | 580 | 405 | 810 | 97 | 425 | 248 |
| 150 | 612 | 432 | 855 | 104 | 452 | 264 |
| 180 | 650 | 459 | 910 | 111 | 480 | 280 |
| 240 | 720 | 510 | 1010 | 122 | 530 | 310 |
| 280 | 760 | 534 | 1060 | 130 | 560 | 325 |
| 300 | 770 | 540 | 1080 | 131 | 570 | 331 |
| 320 | 790 | 560 | 1100 | 132 | 580 | 338 |
| 360 | 820 | 580 | 1150 | 139 | 610 | 353 |
| 420 | 860 | 610 | 1200 | 146 | 640 | 370 |
| 480 | 900 | 640 | 1260 | 153 | 670 | 387 |
| 570 | 950 | 670 | 1330 | 162 | 700 | 408 |
| 660 | 660 | 710 | 1440 | 170 | 740 | 430 |
| 780 | 1060 | 750 | 1480 | 180 | 780 | 456 |
| 900 | 1110 | 780 | 1550 | 189 | 820 | 477 |
| 1020 | 1160 | 820 | 1620 | 197 | 860 | 500 |
| 1140 | 1200 | 850 | 1680 | 204 | 890 | 520 |
| 1290 | 1250 | 880 | 1750 | 212 | 920 | 540 |
| 1440 | 1300 | 920 | 1820 | 221 | 960 | 560 |
| 1590 | 1340 | 950 | 1880 | 228 | 990 | 580 |
| 1740 | 1380 | 980 | 1930 | 235 | 1020 | 600 |
| 1920 | 1430 | 1010 | 2000 | 243 | 1060 | 620 |
| 2100 | 1470 | 1040 | 2060 | 250 | 1090 | 640 |
| 2280 | 1510 | 1070 | 2110 | 257 | 1120 | 650 |
| 2460 | 1550 | 1100 | 2170 | 264 | 1150 | 670 |
| 2640 | 1590 | 1120 | 2230 | 270 | 1180 | 690 |
| 2850 | 1630 | 1150 | 2280 | 277 | 1210 | 700 |
| 3060 | 1670 | 1180 | 2340 | 284 | 1214 | 720 |
| 3780 | 1790 | 1260 | 2510 | 304 | 1320 | 770 |
| 4890 | 1950 | 1380 | 2730 | 332 | 1440 | 840 |
| 5610 | 2040 | 1440 | 2860 | 347 | 1510 | 880 |
| 8700 | 2380 | 1670 | 3320 | 403 | 1750 | 1020 |
| 15400 | 2860 | 2020 | 4000 | 486 | 2110 | 1230 |
| 29000 | 3530 | 2490 | 4840 | 600 | 2610 | 1520 |
| 38500 | 3880 | 2740 | 5430 | 660 | 2860 | 1670 |
| 46000 | 4120 | 2910 | 5770 | 700 | 3040 | 1770 |
