High Holding Power (HHP) N Type Anchor


  • HHP N Type Anchor
  • Weight: 60KG to 28875KG
  • Material: ZG230-45CH, Q345C, stainless steel 316L
  • Finishing: black painting, hot dip galvanized
  • Certificate: BV, ABS, DNV,GL, LRS, RINA, RS, IRS, CCS, KR, NK etc

High Holding Power (HHP) N type anchor

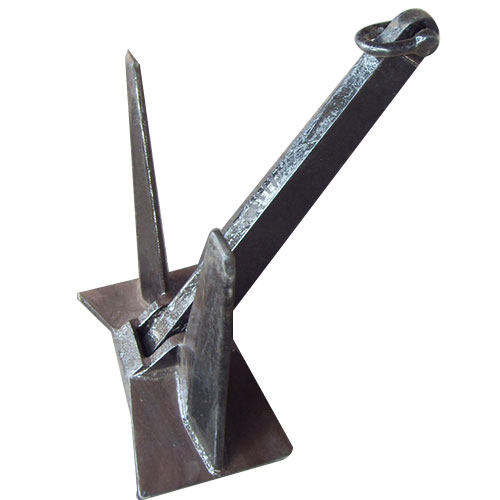

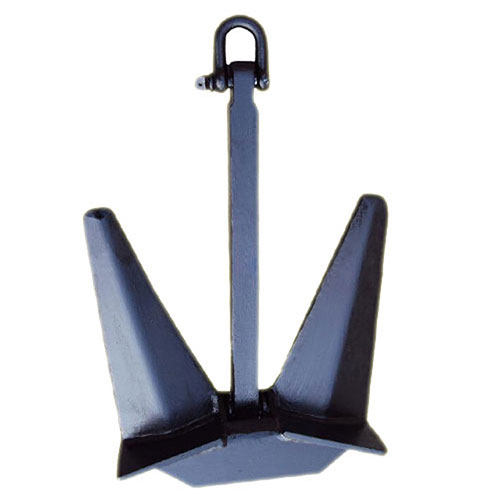

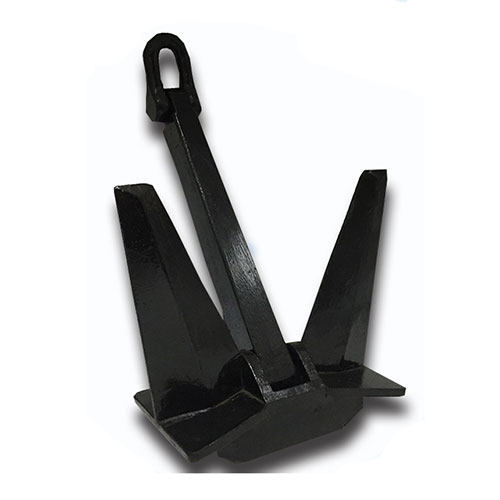

N type anchor is one type of stockless high holding power anchor. It is used as a bow anchor when sailing. Its weight can be lighter by 25% than standard weight. N-type HHP anchor is designed to fit into small anchor pockets on modern ships and the hollow flukes are welded from two plates to create strong anchoring performance under various circumstances. This construction gives the anchor a large resistance against bending forces. The applications of the anchor are large yachts, cruise vessels and container vessel ships. YSmarines is a professional marine anchor supplier and can provide a custom HHP anchor to meet the different needs of customers.

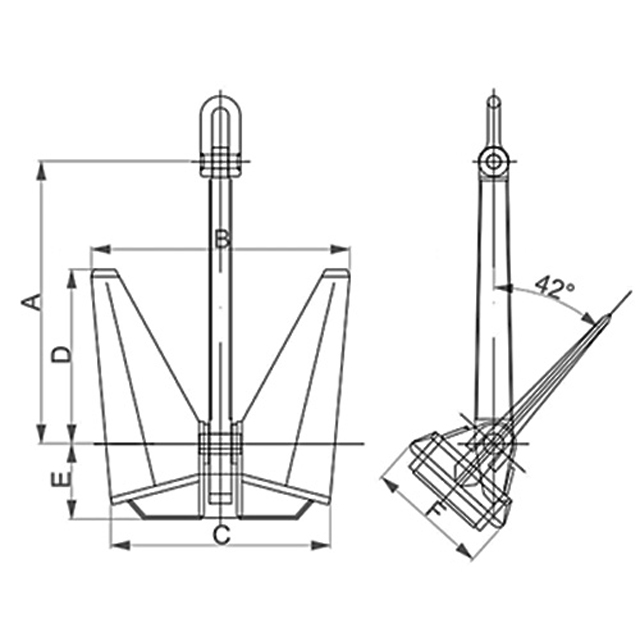

Drawings of High Holding Power (HHP) N type anchor
Nominal Weight(kg) A B C D E F
 60 590 555 470 364  157  270
 80  664 605 515 410 176 295
 100  712 655 555 440 190 320
 160  835 765 650 516 223 370
200 885 825 700 546 236 400
 280 1008 925 780 622 269 450
 360 1096 1005 855 677 292 490
 480 1186 1105 940 728 314 535
 600  1300 1190 1010 802 347 580
765 1410 1290 1096 870 375 610
 1000  1526  1395 1185 942 404 660
 1080  1580  1446  1230  975 421 685
 1195  1636  1485  1270 1010  436  708
 1305  1680  1541  1308  1037  448  730
 1440  1738  1592  1352  1073 464  754
 1575  1769 1640  1386  1092  472  777
 1710  1840  1686  1455  1137 491 798
 1845  1890  1729  1469  1168  504  819
 1980  1935  1770  1504  1195  516 836
 2140  1986 1816  1543  1226  530 860
 2295  2030  1860  1580  1254 540  880
 2655  2140  1954  1684 1322  566  926
2835  2188  1996  1700  1351  580  945
 3000  2238  2042  1736 1382 592  968
3240  2287  2086  1773 1412  605 988
3940  2442  2226  1892  1508 646  1055
4500  2553  2328  1976  1567  675  1103
5175  2675  2439  2072  1651  708  1155
 5515  2730  2491  2116  1686  722  1180
 5850  2786  2541  2159  1720  737 1204
 6225  2838  2594  2204  1750 756  1229
 6525  2880  2635  2239  1780  768  1248
 6975  2948  2695  2290  1820 786  1276
 7425  3010  2760  2338  1858  802  1303
 7875  3069  2805  2384  1895  818  1329
 8775  3180  2908  2471 1964  848  1376
 9225  3235  2968  2512  1997 862  1401
 9675  3286  3004  2553 2029  876  1423
10125  3337  3060  2592  2060  890  1445
 10575  3386  3095  2630  2090  902  1468
 12075  3538  3236  2748 2184  943  1533
 12675  3596 3288  2794 2220 958  1556
 13350  3658  3346  2842 2258 975  1585
 14100  3726  3406  2894  2300  993  1614
 15000  3804  3476 2954  2348  1014  1646
 17250  3985  3643 3095  2460  1062 1726
 20825  4240  3887 3285  2618  1130  1832
 24750  4495  4109 3491  2775  1198  1947
 28875  4717  4324 3675  2912  1258  2049
