Studless Chain
Studless Chain
  • Studless Chain
  • Studless Chain

    • Studless Chain

    • Material: Hot-rolled anchor steel, CM490, CM690, stainless steel 316, 316L
    • Grade: U2, U3
    • Chain Diameter: 12.5mm to 162mm
    • IACS certificate: DNV,GL,ABS,LRS,RINA,BV,NK,KR,IRS,RS etc.
    • Finishing: Hot dip galvanized, the black painting
    • Per length/shot: 27.5mtr or according to requirements

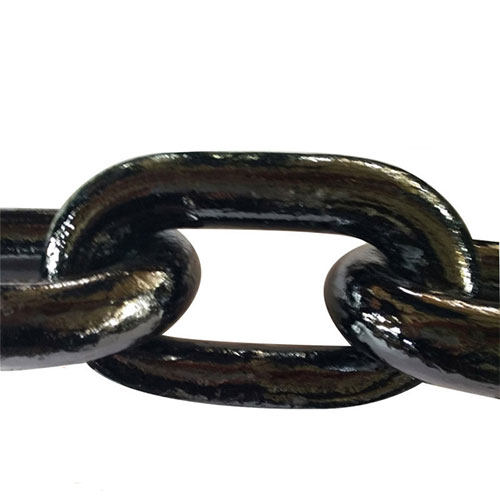

    Studless Chain

    Studless chain is made of stainless steel and the chain diameter starts from 12.5MM to 162mm.It is ideal for demanding offshore mooring operations due to their extremely high quality. It is manufactured according to ISO 1704 standard.The anchor chain benefits from the same static strength and fatigue life characteristics as studded links. It is finishined by hot dip galvanized or black painting. The studless chain supplied by YSmarines has the IACS certificate including DNV,GL,ABS,LRS,RINA,BV,NK, etc, superior quality and best price guaranteed. The dimensions as below are for your references.

    Chain Diameter Proof Load(KN) Breaking Load(KN) Nominal Weigh
    mm Grade 2 Grade 3 Grade 2 Grade 3 kg/27.5m
    12.5 41.2 56.4 82.6 112.8 85.41
    14 51 70.76 101.9 141.51 106.55
    16 66.2 92.42 132.3 184.83 139.43
    17.5 78.89 110.55 157.78 221.1 178.35
    19 93.6 130.32 187.2 260.64 217.68
    20.5 108.64 151.7 217.27 303.42 229.14
    22 125.4 174.7 250.9 349.4 264.49
    24 149.9 207.9 298.9 415.8 341.82
    26 175.4 214 350.8 488 369.94
    28 203.8 283 406.7 566 427.04
    30 234.2 324.9 467.5 649.8 490.98
    32 265.6 369.5 531.2 739.3 559.65
    34 299.9 417.3 599.8 834.6 671.52
    36 336.1 467.8 672.3 935.7 707.85
    38 374.4 521.3 748.7 1042.5 788.98
    40 414.5 577.6 829.1 1155.2 869.36
    42  457.70  636.80  915.30  1273.20 959.3
    44  502.70  698.90  999.60 1398 1111.25
    46  548.80  763.90  1097.60  1527.80 1152.07
    48  597.80 831.7  1195.60 1663.5 1256.26
    50  648.80  902.50  1239.60 1805  1360.41
    52  697.63  976.14  1395.26  1952.28  1485.61
    54  752.33  1052.68 1504.66  2105.36 1648.08
    56  809.09  1132.10  1618.18 2264.2  1715.97
    58  867.91  1214.40  1735.82  2428.80  1844.50
    60  928.80  1299.60  1857.60  2599.20  1973.29
    62  991.75  1387.68 1983.5  2775.36 2101.56
    64  1056.77  1478.66  2113.54 2957.32  2298.47
    66 1123.85  1572.52  2247.70 3145.04  2398.10
    68  1192.99  1669.26  2385.98  3338.52  2522.88
    70 1264.2  1768.90  2528.40 3537.8 2697.65
