    • Material: Hot-rolled anchor steel, CM490, CM690, stainless steel 316, 316L
    • Grade: U2, U3
    • Chain Diameter: 12.5mm to 70mm
    • IACS certificate: DNV,GL,ABS,LRS,RINA,BV,NK,KR,IRS,RS etc.
    • Finishing: Hot dip galvanized, black painting

    Stud Link Anchor Chain

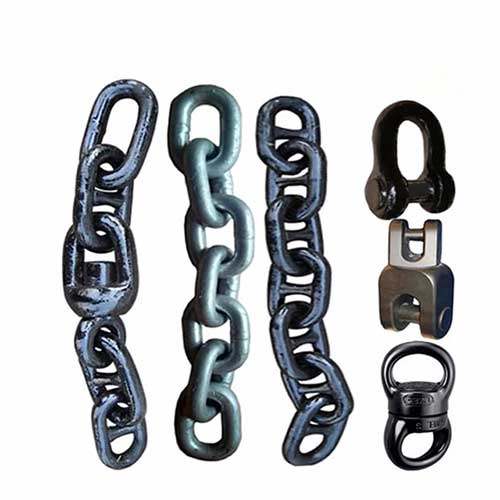

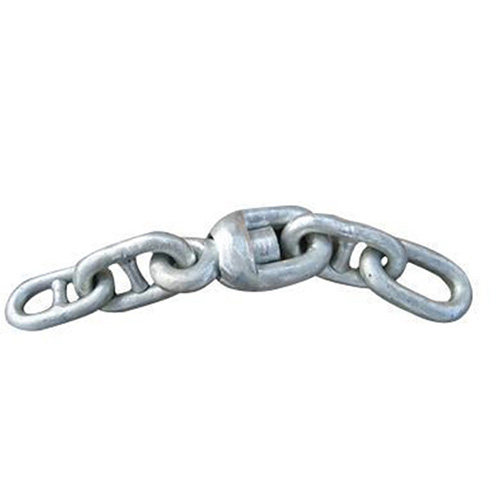

    Stud link anchor chain is made of metal and the chain diameter starts from 12.5MM to 162mm. The chain is produced to ISO 1704 standards and is used for marine anchor and mooring chains. It has a stud Link chain design and is an exceptional marine chain. There are 2 grades available including grade 2 and grade 3. The difference between grade 2 and grade 3 is the additional heat treatment process after manufacturing. The finishing could be hot-dip galvanized or black painting according to the customer’s requirements. YSmarines supply stud link anchor chain for sale with excellent quality and could also provide stainless steel chains for choice.

    Chain Diameter Proof Load Breaking Load Nominal Weight
     mm Grade 2 Grade 3 Grade 2 Grade 3 per length of 27.5m
    12.5 66 92 92 132 110
    14 82 116 116 165 130
    16 107 150  150 216 160
    17.5 127 179 179 256 190
    19 150 211 211 715 225
    20.5 175 244 244 349 265
    22 200 280 280 401 300
    24 237 332 332 476 360
    26 278 389 389 556 420
    28 321 449 449 642 490
    30 368 514 514 735 565
    32 417 583 583 833 635
    34 468 655 655 937 720
    36 523 732 732 1050 800
    38 581 812 812 1160 905
    40 640 896 896 1280 1007
    42 703 981 981 1400 1075
    44 769 1080 1080 1540 1197
    46 837 1170 1170 1680 1310
    48  980 1270 1270 1810  1438
    50  981 1370 1370  1960 1536
    52  1060 1480  1480 2110 1669
    54  1140 1590  1590 2270 1820
    56  1220 1710 1710 2430 1935
     58  1290 1810 1810 2600 2075
     60 1380 1940 1940 2770 2220
     62 1470 2060 2060 2940 2365
     64 1560 2190 2190 3130 2550
     66 1660 2310 2310 3300 2689
     68  1750 2450 2450 3500 2858
     70 1840 2580 2580 3690 3030
     73 1990 2790 2790 3990 3290
     76  2150 3010 3010 4300 3550
     78  2260 3160 3160 4500 3755
     81  2410  3380  3380 4820 4035
     84  2580 3610 3610 5160  4395
     87 2750 3850 3850 5500  4760
     90  2920 4090 4090 5840  5005
     92 3040 4260 4260 6080 5200
     95 3230 4510 45190 6440 5570
     97 3340 4680 4680 6690  5760
    100 3530 4940 4940 7060 6130
     102 3660 5120 5120 7320 6505
    105  3850 5390 5390  7700  6885
    107  3980 5570 5570 7960 7140
    111  4250 5940  5940 8480  7715
     114  4440 6230 6230  8890  8085
     117  4650 6510 6510  9300 8445
     120 4850 6810 6810  9720 9110
     122  5000  7000 7000 9990 9240
     124  5140  7200 7200 10280 9700
     127  5350 7490 7490  10710 10040
     130  5570 7800  7800  11140 10420
     132  5720 8000 8000 11420  10910
     137  6080 7510  7510  12160 11720
     142 6450 9030 9030 12910 12515
     147 6840 9560 9560 13660 13295
     152 7220 10100 10100  14430 14695
     157 7600 10640  10640  15200  15475
     162  7990 11170  11170  15970 16210
