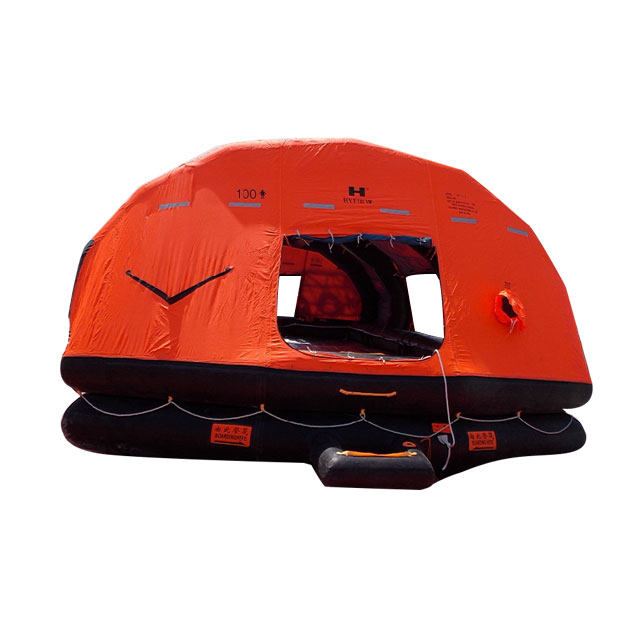

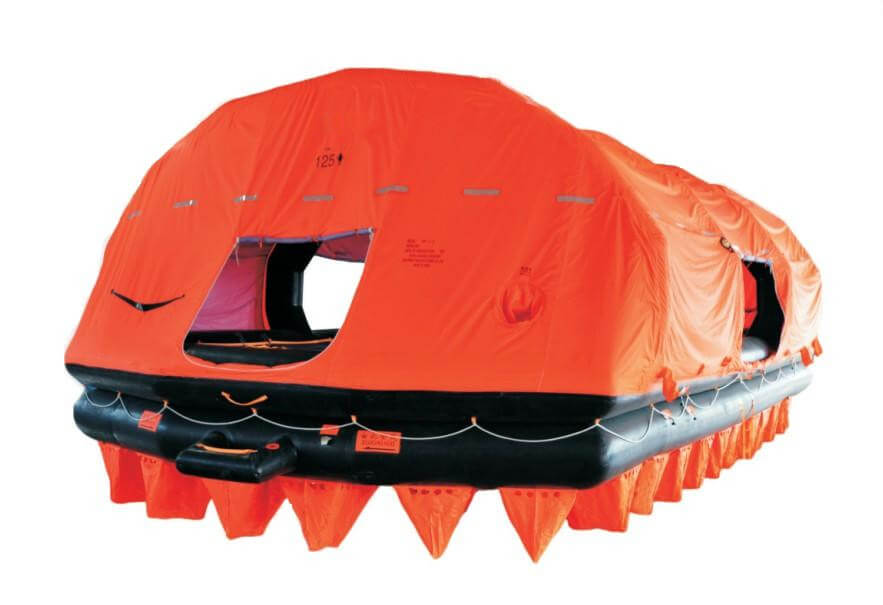

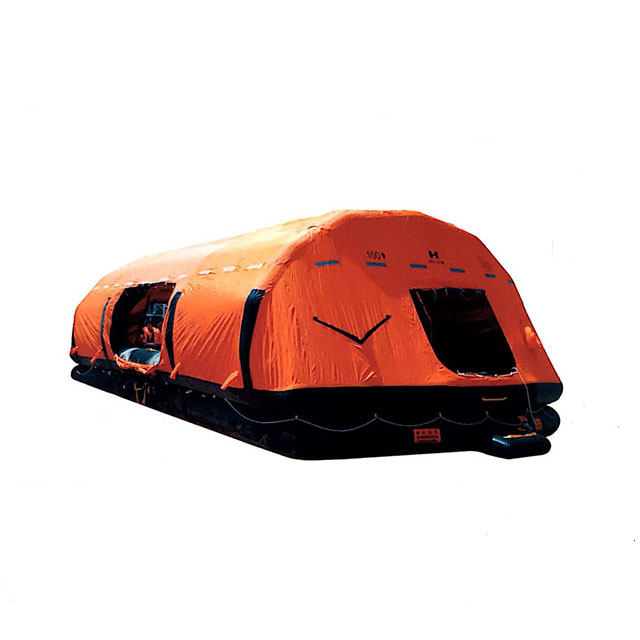

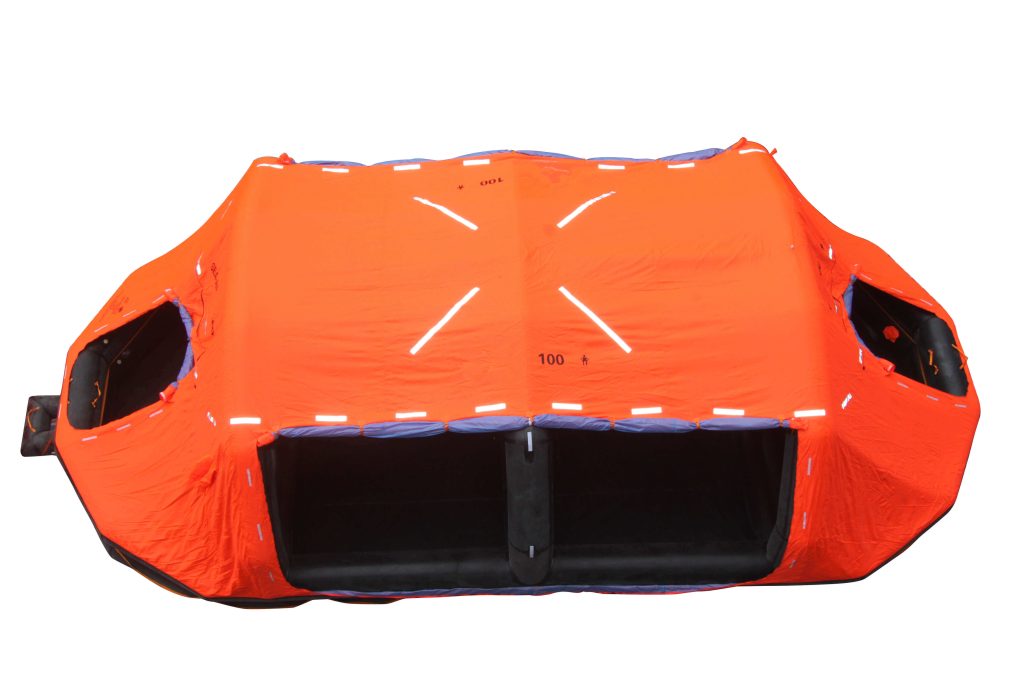

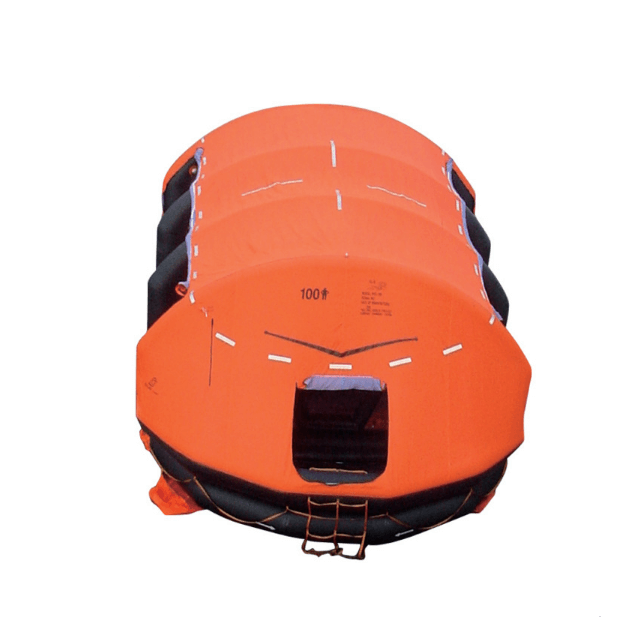

(BIG)Throw-over Type Self Inflating Life Raft Boat Type AZ
- The life raft is made of rubber nylon cloth, which can be folded and stored.
- The life-raft can be self-righting inflated and opened automatically.
- Have capacity to accommodate 50,65,100,101,125 persons.
- It have a canopy.The floor shall be water tight.
- Max. Storage height: The installation height is 25m-36m from water surface.

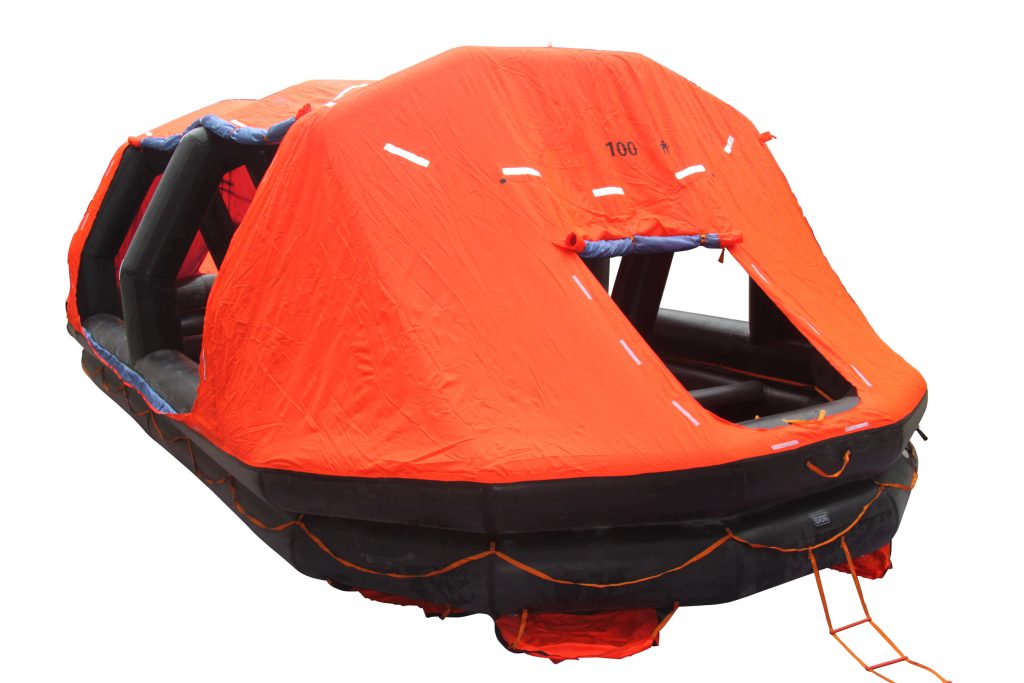

(BIG)Throw-over Type Self Inflating Life Raft Boat Type AZ
The self-inflating lifeboat is one kind of big throw-over inflatable liferafts with a capacity of 50 – 125 persons. It is mainly suitable for coastal and domestic voyages vessels, widely used to evacuate from ships in distress in an emergency, quickly inflated and formed automatically, when thrown into the water. The temperature inflating ranges from -30°c — +65°c.The installation height is 25m-36m from the water surface. The components of the life raft include steel bottles, food, first-aid outfits, quick-release valves, radar reflectors, lithium batteries, painter, etc. YSmarines is engaged in providing high-quality inflatable lifeboats at a reasonable price.
Characteristics Of Self Inflating Life Boat
After throw-over from the ship, the life-raft can be self-righting inflated and opened automatically. If the ship sinks very fast and the inflatable life raft can not be thrown-over, the raft still can float up from water under the action of the Hydro-static Release Unit can be inflated and opened automatically.
Have capacity to accommodate 50,65,100,101,125 persons.
Have a canopy to protect occupants from exposure.
The floor shall be watertight and insulated from protection against cold water.
It is suitable for installing ships on international voyages.
Max. Storage height: The installation height is 25m-36m from the water surface.
A pack and B pack (ships engaged on the short international voyage)
Equipped with some life-saving tools and first aid kit and freshwater.
Standards Of YSmarines Self Inflating Life Boat
It meets the requirements of 《Regulations for the statutory surveys of ships and offshore installations》 “Technical regulations for the statutory surveys of sea-going ships engaged on international voyages (2004) ” P.R.C. and SOLAS 74/96 amendment. LSA and MSC.(81)70, MSC.226(82), MSC.295(87), MSC.323(89).
Certificate Of YSmarines Inflating Life Boat
China Classification Society (CCS)
Certificate of type approval.
Germanischer Llyod AG (GL)
EC Type Examination Certificate.
|
Type |
Capacity | Container Dia. (mm) | Weight (KG) | ||
| A PACK | B PACK | A PACK | B PACK | ||
| AZ50 | 50 | 1960*850 | 1680*800 | ≤357 | ≤232 |
| AZ65 | 65 | 2080*1090 | 1960*850 | ≤473 | ≤314 |
| AZ100 | 100 | 2200*1150 | 2080*1090 | ≤688 | ≤472 |
| AZ101 | 101 | 2200*1150 | 2080*1090 | ≤690 | ≤472 |
| AZ125 | 125 | 2600*1150 | 2200*1150 | ≤1024 | ≤624 |
Accessory List Of Inflatable Life Boat
| No | Name | Unit | Quantity | |
| A Pack | B Pack | |||
| 1 | Ration | pk(0.5Kg) | 1/Person |
|
| 2 | Fresh Water | pk(0.5L) | 3/Person | – |
| 3 | Rocket Parachute Flare | PC | 4 | 2 |
| 4 | Hand-Held Flare Signal | PC | 6 | 3 |
| 5 | Floating Smoke Signal | PC | 2 | 1 |
| 6 | Thermal Protective Aid | PC | 2 | 2 |
| 7 | Sea Anchor | PC | 2 | 2 |
| 8 | Water-proof Flash | PC | 1 | 1 |
| 9 | Floatable Rescue Quoit | PC | 1 | 1 |
| 10 | First Aid Kit | PC | 1 | 1 |
| 11 | Radar Reflector | SET | 1 | – |
| 12 | Sunlight Signal Mirror | SET | 1 | 1 |
| 13 | Whistle | PC | 1 | 1 |
| 14 | Paddle | PC | 2 | 2 |
| 15 | Fishing Kit | SET | 1 | – |
| 16 | Bailer | PC | 1-2 | 1-2 |
| 17 | Sponge | PC | 2 | 2 |
| 18 | Drinking Measuring Cup | PC | 1 | – |
| 19 | Disposal Bag | PC | 1/Person | 1/Person |
| 20 | Survivor’s Manual | COPY | 1 | 1 |
| 21 | Bellows Inflator | PC | 1 | 1 |
| 22 | Floatable Knife | PC | 1~2 | 1~2 |
| 23 | Can-openers | PC | 3 | – |
| 24 | Seasick Pill | TABLET | 6/Person | 6/Person |
| 25 | Emergency Action Card | COPY | 1 | 1 |
| 26 | Operations Manual | COPY | 1 | 1 |
| 27 | Repair Fit | SET | 1 | 1 |
Packaging Of YSmarines Inflatable Life Boat

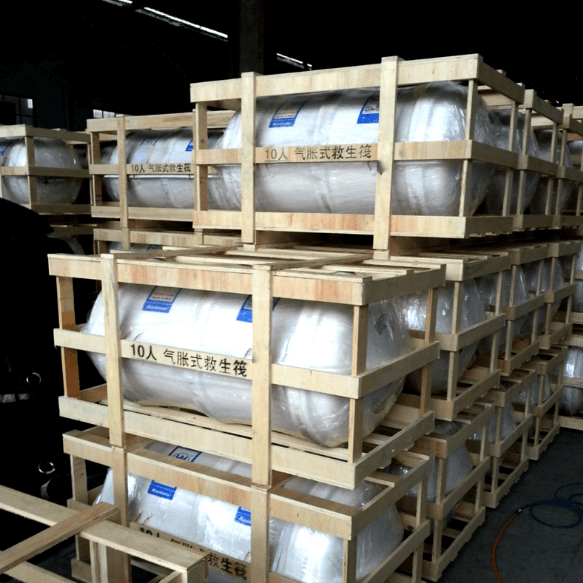

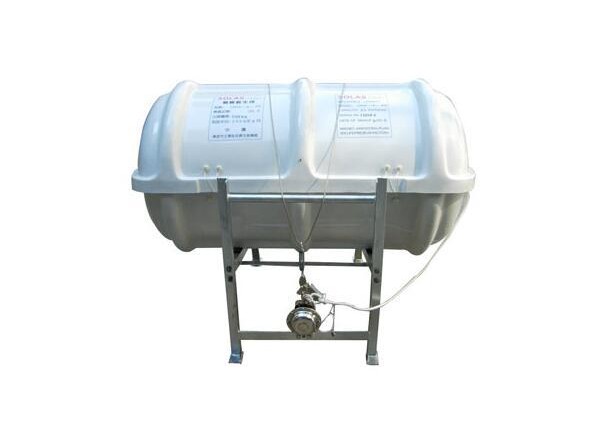

1. Generally, we pack our goods in neutral brown cartons or wooden frame cases, ensure that the goods are not damaged in transit. And the inside of the package is covered with a valise pack or white rigid pack. On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.
2. We can also customize the packaging according to the customer’s requirements.

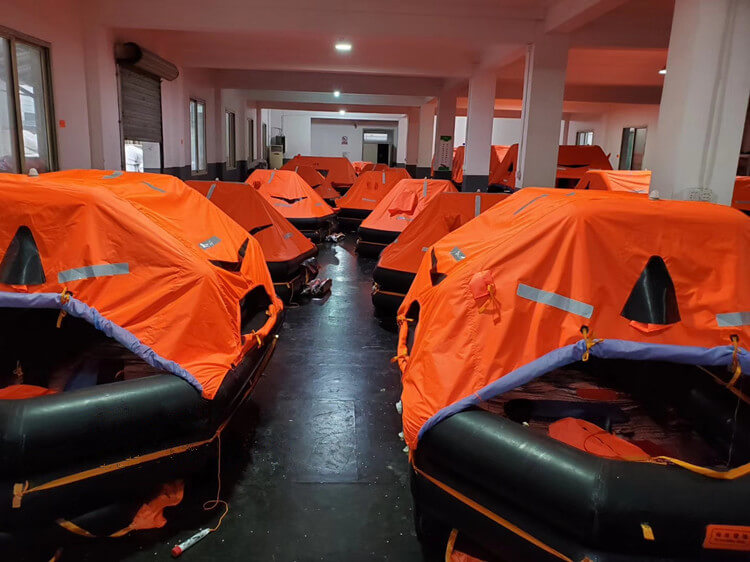

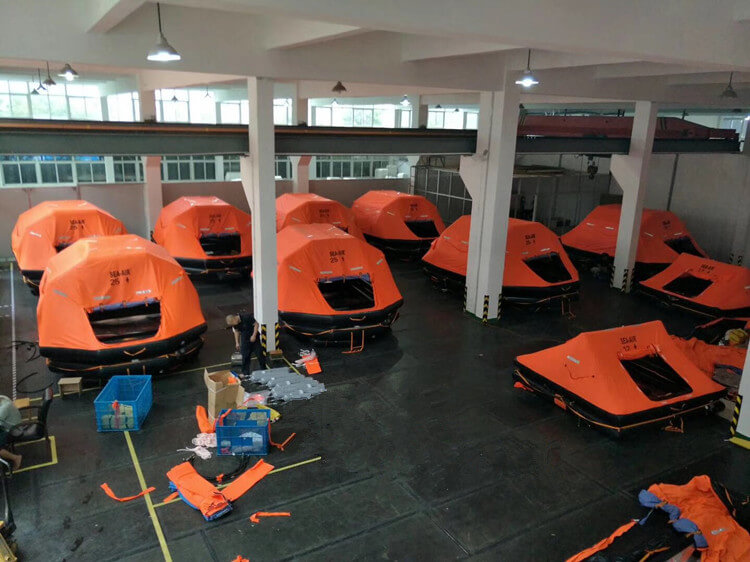

Workshop Of Inflatable Life Boat

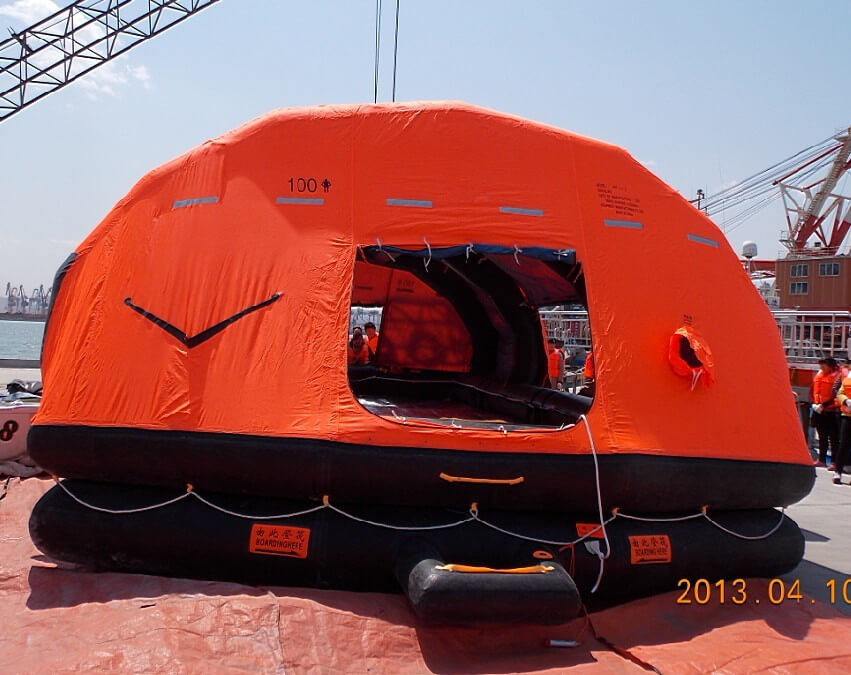

Applications Of Self Inflating Life Boat
