Platform Lifeboat Davit
- Launch of the lifeboat in maximum load condition
- Gravity lowering of the loaded lifeboat independent of external power supply
- Retrieval of the lifeboat with a crew of three persons using electric power
- Retrieval of the lifeboat by manual hand-cranking
- Optional approval for rescue function, according to the latest SOLAS regulations
Product Introduction
The platform davit is used on an offshore platform, lowering the lifeboat and rescue boat depending on its own gravity, and recovering the lifeboat and rescue boat by electric boat winch.
The platform lifeboat davit is built in accordance with IMO/SOLAS requirements, LSA code and European Council Directive 2014/90/EU on Maritime Equipment (MED). The platform davit system is specifically designed for safe and efficient launch and retrieval of a conventional lifeboat (totally enclosed lifeboat). The davit system is designed for a long time operation in a tough and corrosive marine/offshore environment.

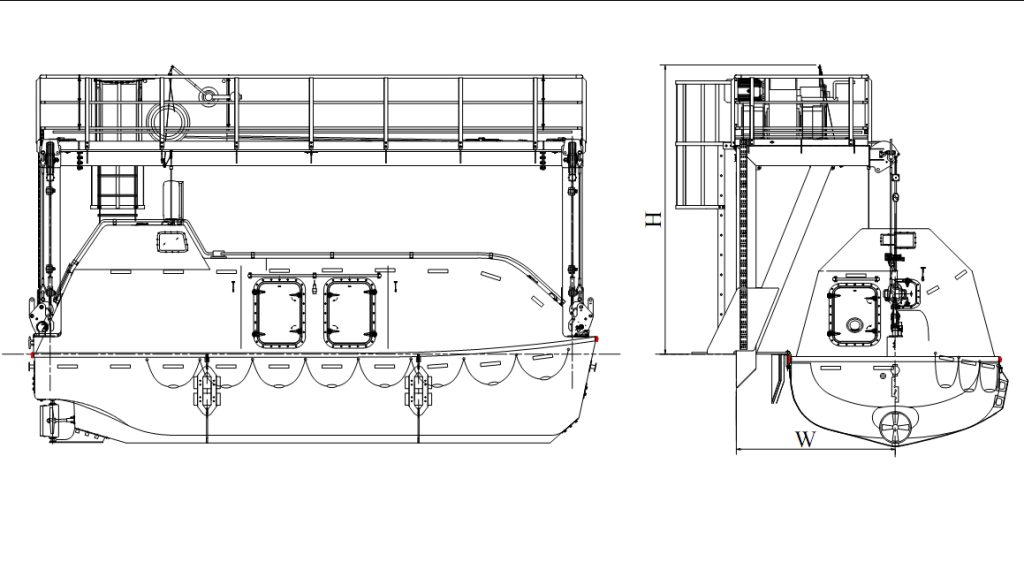

Technical Parameters:
| MODEL | SWL (kn) | A (mm) | H (mm) |
| PD65 | 65 | 2270 | 3600 |
| PD85 | 85 | 2350 | 3600 |
| PD125 | 125 | 2600 | 4100 |
| PD150 | 150 | 2780 | 4300 |
| PD170 | 170 | 3000 | 4500 |
| PD210 | 210 | 3000 | 4800 |
| PD280 | 280 | 3800 | 4900 |
