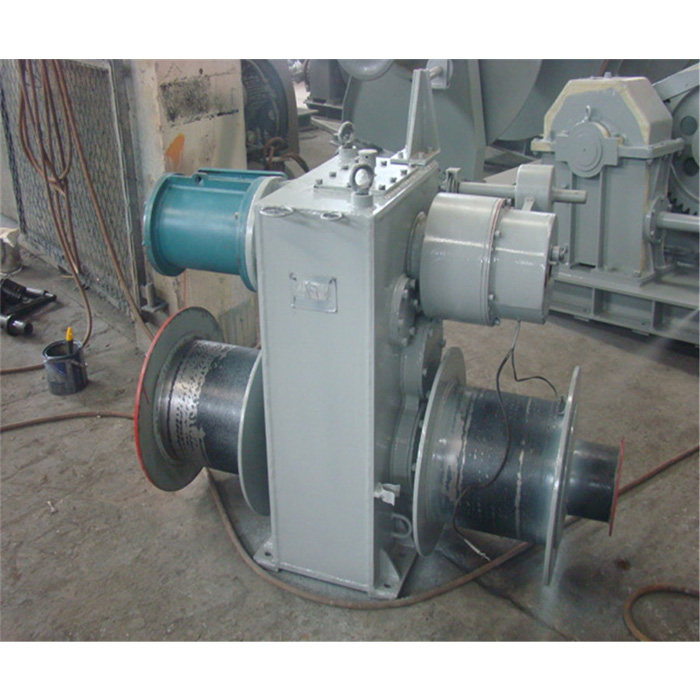

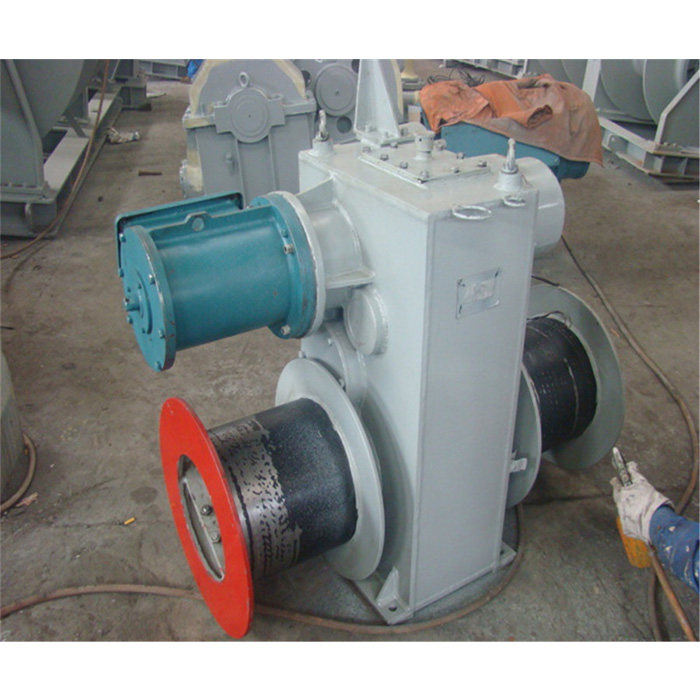

Electric Lifeboat Winch
- Suitable for lifeboat and rescue boat launching appliances.
- In accordance with SOLAS requirements.
- Simple installation and maintenance.
Product Introduction
The electric lifeboat winch is designed and built according to the latest regulations of SOLAS and international standards. There are two types of electric rescue boat winches, which are the left winch and right winch. It is symmetrical to the right one. It should move the motor to check if the drum rotation is correct or not. The rotation should be in the hoisting direction before the test once the installation is finished. Otherwise, we should adjust the motor wiring.
Technical Parameters:
| MODEL | SWL (kn) | HOISTING LOAD (kn) | HOISTING SPEED (m/min) | LOWERING SPEED (m/min) | MOTOR POWER (kw) |
| ELW25 | 25 | 20 | ≥10 | 90-110 | 5 |
| ELW40 | 40 | 20 | ≥10 | 80-90 | 5 |
| ELW42 | 42 | 21 | ≥10 | 80-110 | 5.5 |
| ELW50 | 50 | 28 | ≥10 | 95-120 | 5.5 |
| ELW63 | 63 | 30 | ≥10 | 80-120 | 7.5 |
| ELW100 | 100 | 70 | ≥10 | 90-120 | 15 |
| ELW125 | 125 | 70 | ≥8 | 90-120 | 15 |
| ELW145 | 145 | 100 | ≥8 | 90-120 | 22 |
| ELW170 | 170 | 90 | ≥8 | 90-120 | 22 |
