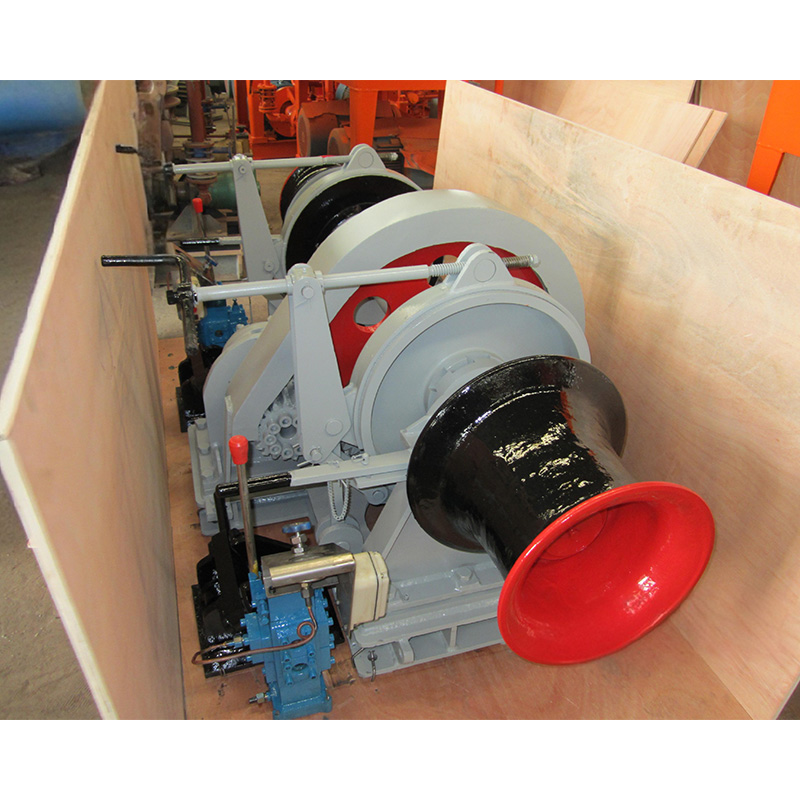

Marine Windlass
- Driven method: Electrical, Hydraulic, Manual, Diesel Engine, etc.
- Dia. of anchor chain: φ12.5–φ114mm.
- Configuration: Single or Double Gypsies, with/without warping head, with/without wire drum.
- Brake/Clutch: Manual/Hydraulic Operated.
- Control: Local/Remote
- Certification: ABS, GL, LR, BV, CCS, RMS,DNV, NK, ETC.
Understanding the Key Characteristics of Marine Windlass
- A marine windlass is a large deck machinery used on vessels.
- It is designed to recover and release the anchor and anchor chain.
- It is normally installed on the main deck at the vessel’s stern.
- It is often used in combination with a mooring winch.
- A marine anchor windlass restrains and manipulates the anchor chain and/or rope.
- It allows the anchor to be raised and lowered efficiently.

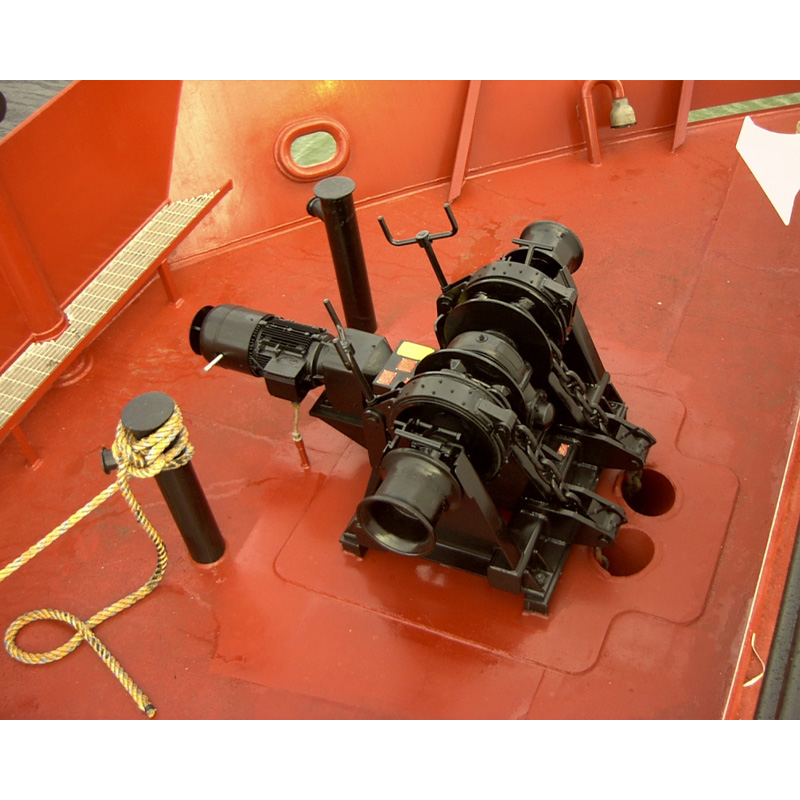

Application of Marine Windlass
Marine windlasses are usually used to secure ships to prevent them from drifting or being exposed to other dangers in harsh sea conditions. Windlass can be used in ports, bays, rivers, and other water areas. Windlasses can also be used for anchoring other equipment, such as oil well platforms, offshore wind turbines, and so on.
Technical Parameters of Marine Windlass
| Chain Dia. (mm) | Working Load (kN) | Supporting Load(kN) | Nominal Speed (m/min) | Mooring Load (kN) | Power (kW) | Overall Size (mm) |
| 12.5/14 | 5.9/8.3 | 30/51 | ≥9 | 5 | 3/12 | 1400*1200*900 |
| 16/17.5 | 8.3/10.9/13 | 81/67/80 | ≥9 | 8 | 4.3/1.7 | 1400*1300*900 |
| 19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 10 | 8.5/3.5 | 1600*1300*930 |
| 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 8.5/3.5 | 1900*1300*930 |
| 28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 | 11/11/7.5 | 2300*1600*1050 |
| 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 16/16/11 | 2300*1600*1080 |
| 38/40/42 | 61.4/68/75 | 365/402/442 | ≥9 | 40 | 22/22/16 | 2500*1700*1200 |
| 44/46/48 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 50 | 30/30/22 | 2800*1700*1400 |
| 50/52/54 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 30/30/22 | 2800*1700*1400 |
| 56/58/60 | 133.3/143/153 | 764/816/870 | ≥9 | 60 | 45/45/30 | 3000*1950*1600 |
| 62/64 | 163.4/174.1 | 925/982 | ≥9 | 80 | 45/45/30 | 3000*1950*1600 |
| 66/68 | 185.1/196.5 | 1040/1098 | ≥9 | 100 | 45/45/30 | 3000*1950*1800 |
| 70/73 | 208.3/226.5 | 1160/1254 | ≥9 | 100 | 60/60/45 | 3300*2300*1800 |
| 76/78 | 245.5/258.6 | 1350/1416 | ≥9 | 125 | 60/60/45 | 3300*2300*1900 |
| 81/84 | 311.7/335.2 | 2171/2320 | ≥9 | 140 | 75/75/36 | 3500*2600*2100 |
| 87/90 | 359.5/384.8 | 2473/2629 | ≥9 | 150 | 75/75/36 | 3500*2600*2100 |
| 92/95 | 402/428.7 | 2735/2898 | ≥9 | 200 | 85/85/64 | 3800*2800*2200 |
| 97/100 | 446.9/475 | 2995/3162 | ≥9 | 250 | 100/100/50 | 3800*2800*2400 |
| 105/107 | 523.7/543.8 | 3612/3750 | ≥9 | 300 | 110/110/55 | 4000*2800*2400 |
| 112/114 | 595.8/617.3 | 4109/4228 | ≥9 | 350 | 132/132/66 | 4000*3100*2400 |
Classifications for Marine Windlass
According to the driven power, the windlass can be divided into electric windlass, hydraulic windlass, manual windlass and diesel engine windlass. YSmarines provides a variety of standard and customized windlasses to meet all your needs.

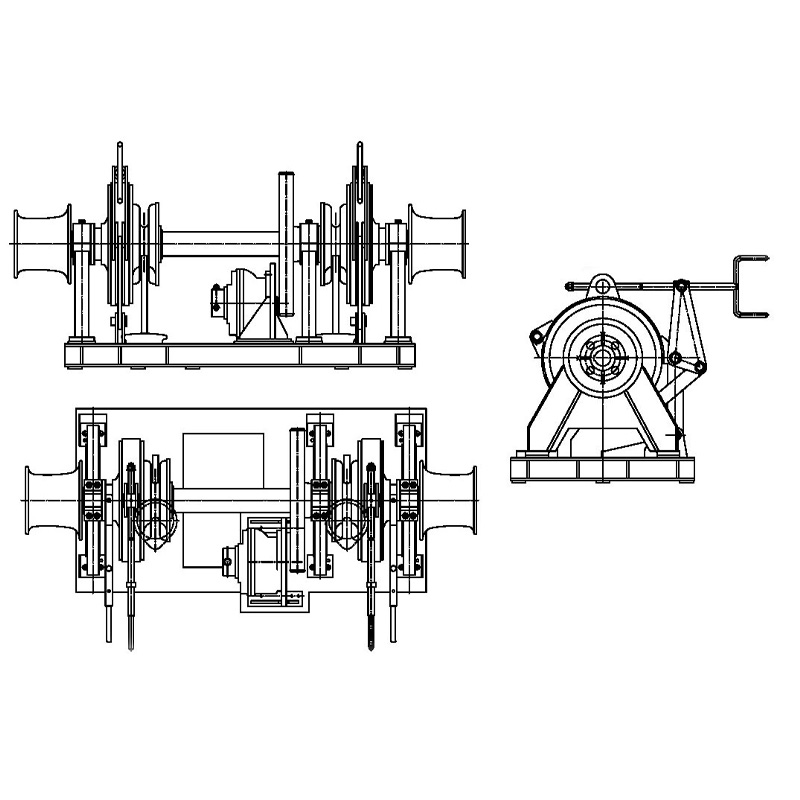

Marine windlass consists of a base, bracket, gypsy wheel, brake, chain wheel, gearbox, electrical control system( except for manual windlass), etc. Electric windlass has a motor with it and the hydraulic windlass has a hydraulic pump station. The windlass is chosen according to the vessel, dimension of the anchor & anchor chain.
