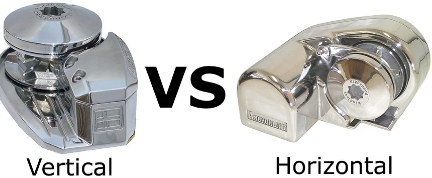

Vertical vs.Horizontal Windlasses - Choosing the Right Type for Your Vessel

A marine windlass is an essential piece of equipment on any vessel, playing a crucial role in deploying and retrieving the anchor. When selecting a windlass, one of the primary considerations is choosing between a vertical windlass and a horizontal windlass. Both designs offer distinct advantages and are suited for different types of boats. Understanding the differences, benefits, and drawbacks of vertical and horizontal windlasses, can help vessel owners make an informed decision.

What are Vertical Windlass

A vertical windlass is a type of anchoring system used on boats and ships to deploy and retrieve the anchor chain or rope. It features a vertically oriented gypsy (wildcat), which engages with the anchor chain, allowing for smooth operation. The key characteristic of a vertical windlass is that its motor and gearbox are positioned below deck, while only the gypsy and drum are visible above deck.

Pros:

Space-Saving Design: Since the motor and gearbox are located beneath the deck, a vertical windlass takes up less space above deck, resulting in a cleaner and more streamlined appearance.
Better Chain Wrap: Vertical windlasses provide almost 180° of chain contact with the gypsy, improving grip and reducing wear on the chain.
More Efficient Operation: The vertical layout allows for better chain alignment and smoother operation when retrieving the anchor.

Cons:

Requires More Below-Deck Space: A vertical windlass needs adequate space beneath the deck to house the motor and gearbox, which may not be available on smaller boats.
More Complex Installation: The need to fit components below deck makes installation more challenging and may require additional waterproofing.
Maintenance Accessibility: Since critical components are below deck, routine maintenance and repairs may be more difficult compared to a horizontal windlass.

Common Applications:

Vertical windlasses are commonly found on larger vessels and yachts, where there is enough below-deck space to accommodate the motor and gearbox. They are favored for their reliability, efficiency, and ability to handle heavier anchor loads.

What are Horizontal Windlasses

A horizontal windlass is an anchoring device designed to raise and lower an anchor chain or rope using a horizontally oriented gypsy (wildcat). Unlike vertical windlasses, all of the windlass components—including the motor, gearbox, and gypsy—are mounted above deck in a horizontal layout. This design makes them a practical choice for boats with limited below-deck space.

Pros:

Easier Installation and Maintenance: Since all components are above deck, installation is simpler, and access for maintenance is more convenient.
Ideal for Smaller Boats: A horizontal windlass does not require significant below-deck space, making it a better choice for vessels with limited room.
Effective in Shallow Anchor Lockers: Horizontal windlasses work well when there is limited fall height for the chain to drop into the locker, preventing jams.

Cons:

More Deck Space Required: The above-deck design means the windlass takes up more visible space, potentially interfering with deck operations.
Reduced Chain Wrap: Horizontal windlasses typically provide only about 90° of chain contact with the gypsy, which can result in higher wear and lower grip efficiency.
Exposure to Harsh Marine Conditions: Since all components are above deck, they are more exposed to saltwater, weather, and potential corrosion.

Common Applications:

Horizontal windlasses are often used on smaller to mid-sized boats that lack the below-deck space needed for a vertical windlass. They are popular for their ease of installation, accessibility for maintenance, and suitability for boats with lower anchor locker depths.

Key Differences Between Vertical and Horizontal Windlasses

This chart provides a clear comparison between vertical and horizontal windlasses, helping boat owners choose the best option based on their vessel size, space availability, and operational needs.

Feature	Vertical Windlass	Horizontal Windlass
Orientation	Gypsy and drum rotate vertically with the motor and gearbox below deck.	Gypsy and drum rotate horizontally, with all components above deck.
Space Requirements	Requires more below-deck space but saves space on the deck.	Requires more deck space but no below-deck installation.
Chain Wrap Efficiency	Provides 180° chain wrap, ensuring a better grip and reduced wear.	Provides 90° chain wrap, which may lead to slightly more strain on the chain.
Installation Complexity	More complex installation due to the below-deck motor and gearbox.	Easier to install as all components are mounted on the deck.
Maintenance Accessibility	Harder to access the motor and gearbox for maintenance as they are below deck.	Easier maintenance since all parts are above deck.
Durability in Marine Conditions	Less exposed to weather and corrosion since key components are below deck.	More exposed to saltwater and weather, requiring extra corrosion protection.
Boat Size Suitability	Best suited for larger boats and yachts with ample space.	Ideal for smaller to mid-sized boats with limited below-deck space.
Aesthetic Appeal	Creates a cleaner and more streamlined deck layout.	More visible on the deck, which may impact aesthetics.
Cost	Generally more expensive due to complex installation and design.	Usually more affordable and easier to set up.

Which Windlass is the Best Suitable for Your Boat

The choice between a vertical and horizontal windlass largely depends on the size of the vessel, available space, and operational needs.

Choose a vertical windlass if you have a larger vessel, need a more efficient and durable anchoring system, and have sufficient below-deck space for installation.
Opt for a horizontal windlass if you have a smaller or mid-sized boat, need an easier installation and maintenance process, or have limited below-deck space.

Final Thoughts

Both vertical and horizontal windlasses are effective anchoring solutions, and the best option depends on balancing space constraints, maintenance requirements, and anchoring efficiency. By carefully considering these factors, boat owners can select the windlass that best suits their needs, ensuring safe and hassle-free anchoring operations.
